Hydraulic Pile Driver PDI Two Pillar Pile Drivers For Drilling Casing Construction

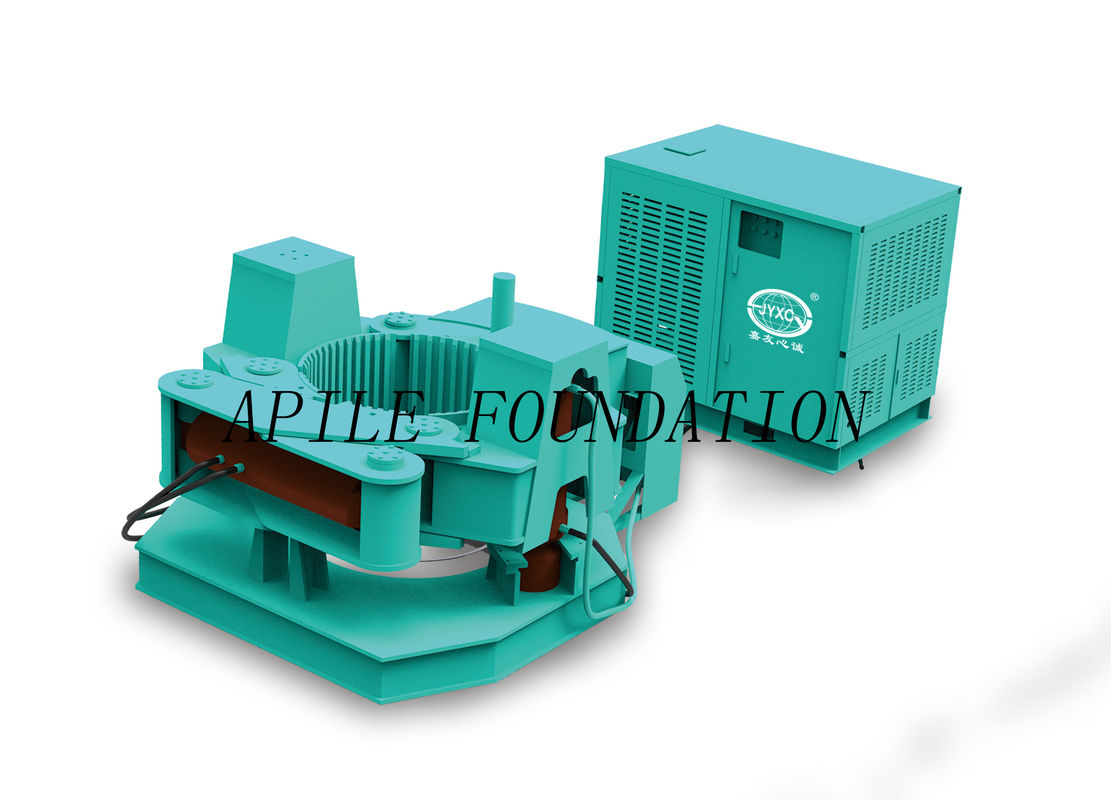

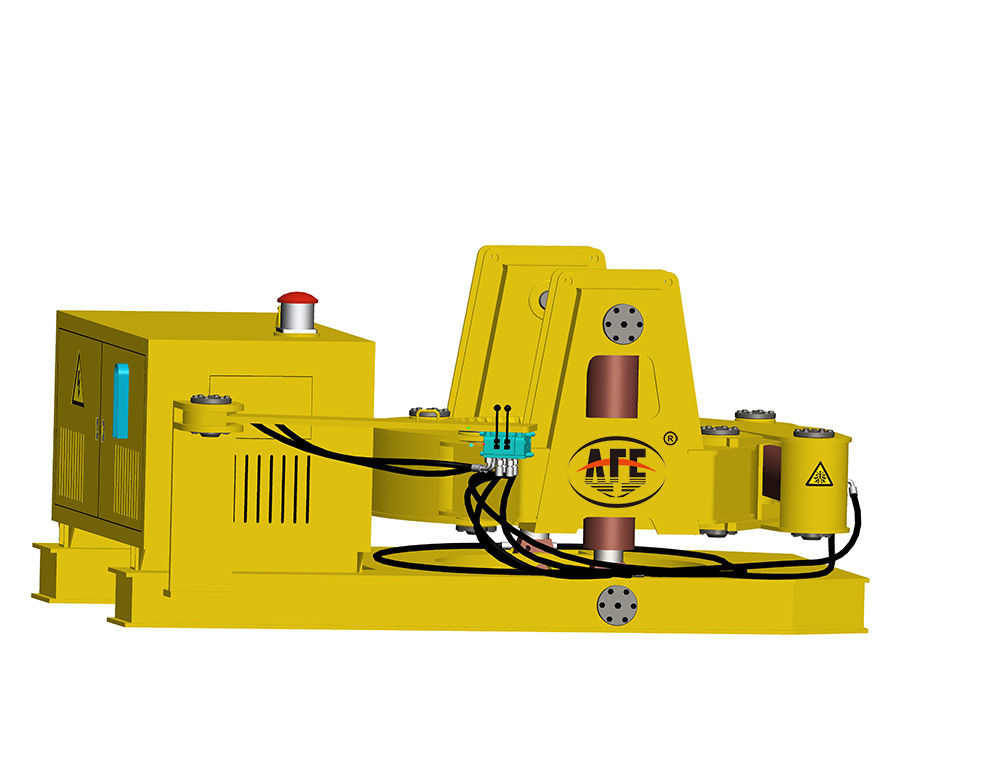

The PDI Two-Pillar Pile Drivers
Purpose:
The PD series pile drivers are the auxiliary equipment for drilling and casing construction in various geotechnical drilling and excavation engineering. It is suitable for casing rotary drilling machine or rotary drilling machine, casing drilling caisson pile, occlusal pile, rotary jet drilling, micropile and anchor drilling and lifting or drawing of retaining pipe of concrete diaphragm wall etc. It can also be used for casing and drill pipe in accident treatment of various drilling tools. "
Apile Foundation" PD series pile driver has the following characteristics and advantages:
1. Simple and compact structure, safe and reliable, flexible response,simple and convenient operation and maintenance.
2. The PD series products cover two cylinders, three cylinders, four cylinders, customers can choose large space according to construction conditions.
3. Select domestic famous military industry brand synchronous valve, The synchronism performance is good in pulling up and dropping.
4. Adopt independent high-pressure power station with large piston rod, small cylinder diameter combination design, large pullout force and high speed.
5. Manual and remote operation mode, saving labor cost.

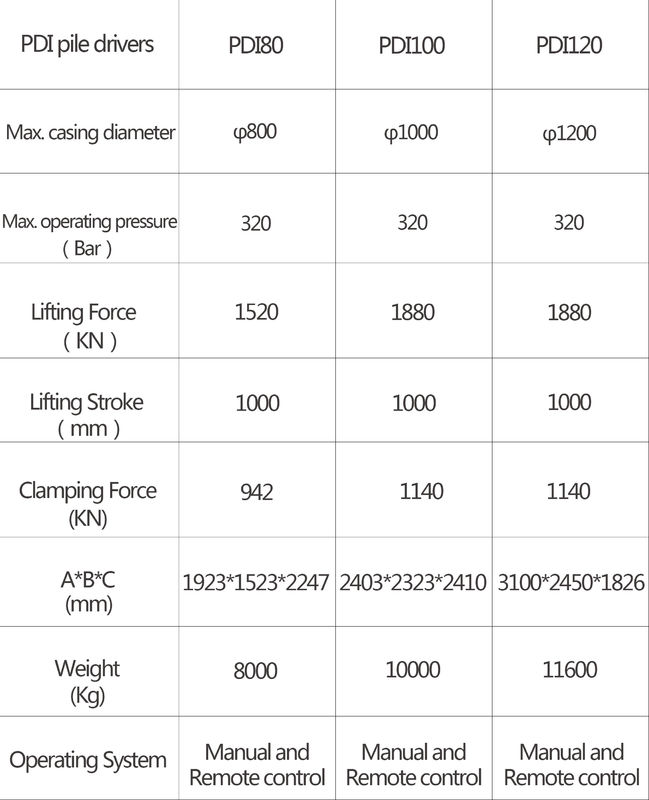

| PDI pile drivers | PDI80 | PDI100 | PDI120 |
| Max.casing diameter | φ800 | φ1000 | φ1200 |
| Max.operating pressure (Bar) | 320 | 320 | 320 |
| Lifting Force (KN) | 1520 | 1880 | 1880 |
| Lifting Stroke (mm) | 1000 | 1000 | 1000 |
| Clamping Force (KN) | 942 | 1140 | 1140 |
| A*B*C (mm) | 1923*1523*2247 | 2403*2323*2410 | 3100*2450*1826 |
| Weight (Kg) | 8000 | 10000 | 11600 |
| Operating System | Manual and Remote control |
Manual and Remote control |
Manual and Remote control |

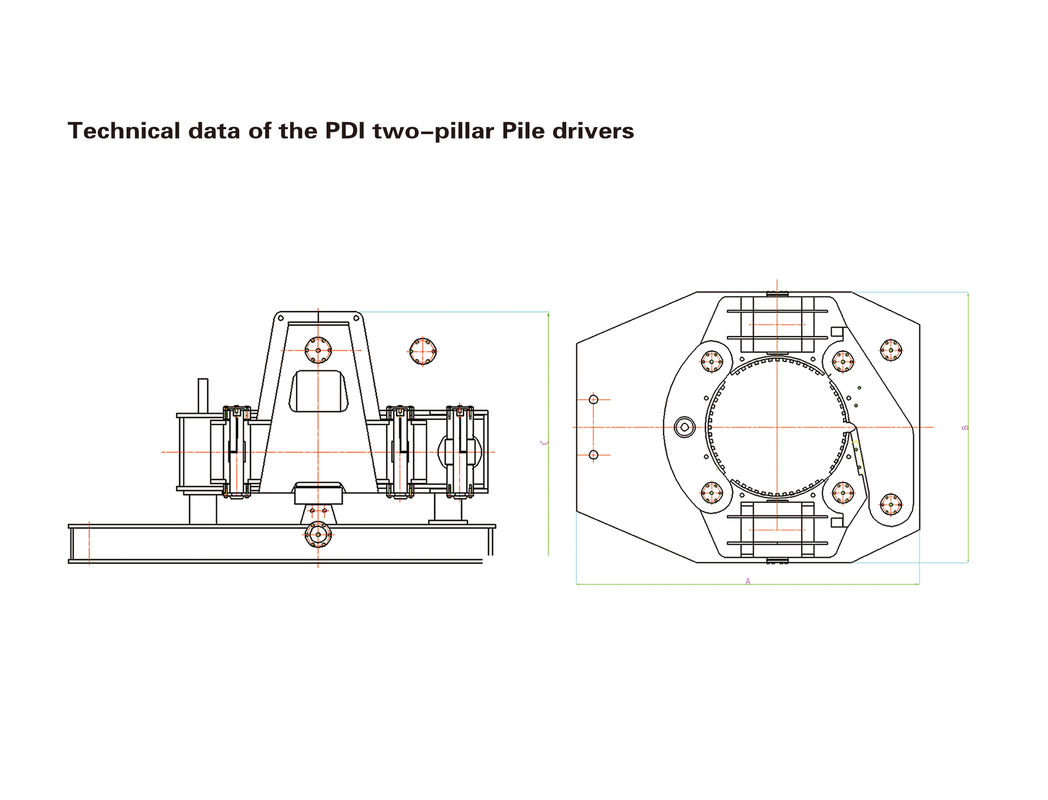

Product schematic diagram:
