Place of Origin:
HeBei China
Brand Name:
JYXC
Certification:
ISO9001
Model Number:
AFECZX
Contact Us
Technical Data of the AFEXWX Casing Oscillators:
| Model | AFEXWXI00 | AFDXWX120 | AFE0WX165 | AFEXWX180 | AFEXWX200 | AFD0WX220 | AFEXWX250 |
|
Max.casing diameter |
φ1000 | φ1200 | φ1650 | φ1800 | φ2000 | φ2200 | φ2500 |
|
Operating pressure |
320 | 320 | 320 | 320 | 320 | 320 | 320 |
|
Torque (KN.m) |
1060 | 2100 | 2450 | 3000 | 4410 | 4920 | 7230 |
|
Lifting stroke (mm) |
500 | 500 | 500 | 500 | 500 | 500 | 600 |
|
Lifting force(KN) |
1530 | 2280 | 2500 | 2940 | 3690 | 3690 | 4820 |
|
Clamping force(KN) |
940 | 1320 | 1470 | 1845 | 2410 | 2410 | 3770 |
|
Rotation angle |
24 | 24 | 24 | 24 | 24 | 24 | 24 |
| Weight(T) | 9 | 13.3 | 20 | 24 | 30 | 34 | 40 |
|

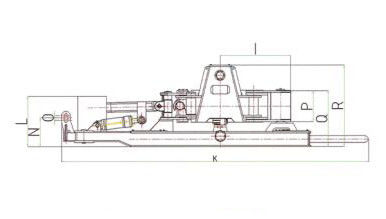

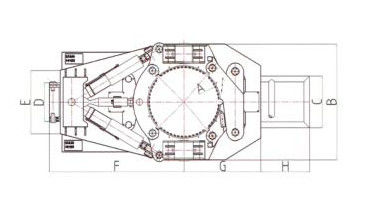

Outline dimension (mm) |
3800* 2110*1440 |
4640* 2280*1690 |
4980* 2800*1750 |
5520* 3000*2000 |
6020* 3440*2050 |
6490* 3700*2120 |
7250* 4190*2350 |
|
Jaw thickness (mm) |
480 | 520 | 660 | 680 | 750 | 820 | 890 |
|
Rotayarc Length (mm) |
218 | 260 | 345 | 375 | 420 | 460 | 524 |
Product transaction information:
| Minimum order quantity | 1 set |
| Price: | subject to contract |
| Payment method: | subject to contract |
| Delivery date: | subject to contract |
| Conventional packaging: | According to customer needs |
Features:
1. Three-petal jaw design, the casing has good automatic centering performance and large clamping force (holding force);
2. Using computer to simulate construction conditions for mechanical and structural optimization design, avoiding the arc interference and hanging phenomenon of structural parts during the work process.
3. The two pumping station system configurations of electric motor and diesel engine, customers can choose according to their own needs.
4. Two operating modes, manual and remote control, are easy to switch.
Application areas:
Urban subway foundations, deep foundation pit retaining occlusal piles, urban transformation piles and obstacle removal piles, railways, ports, roads and bridges, rivers, lakes, high-rise buildings, hydropower and water conservancy construction bored piles, and special purpose bored piles.
Applicable strata:
All stratums constructed by rotary drilling rigs. It is especially suitable for complex formations where pebbles, silt, quicksand, silt, broken and karst caves are developed, backfills, swamps, lakes, rivers and other mud can not normally protect the walls.
Packaging & Delivery:
Quantity(Sets):≥1
