casing puller remote control hydraulic rotary drilling rig pdf four column extubation machine

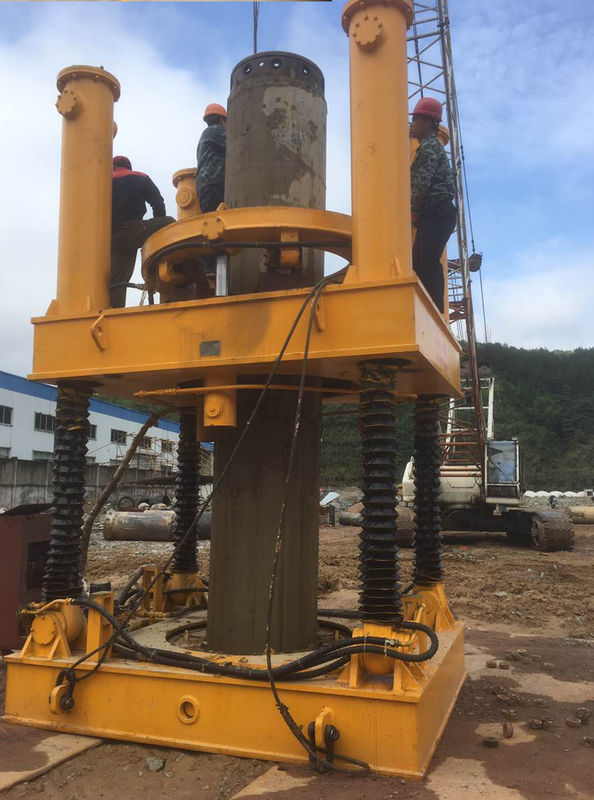

Remote Control Hydraulic Rotary Drilling Rig PDF Four Column Extubation Machine
PDF Four-Column Extubation Machine
Product Name:Four-column extubation machine
Product parameters:
| PDT piledrivers | PDT100 | PDT120 | PDT165 | PDT200 | PD1250 |
|
Max.casing diameter (mm) |
φ1000 | φ1200 | φ1650 | p2000 | p2500 |
|
Max. operating pressure (Bar) |
320 | 320 | 320 | 320 | 320 |
| Lifting Force (KN) |
3760 | 3760 | 4560 | 7380 | 9640 |
| Lifting Stroke (mm) |
1000 | 1000 | 1000 | 1000 | 1000 |
| Clamping Force (KN) |
1140 | 1140 | 1470 | 2410 | 3760 |
| A*B*C(mm) |
2080* 1720*2150 |
2470* 2100*2180 |
2942* 2700*2350 |
3570* 3774*2500 |
4713* 4400*2500 |
| Weight (Kg) | 10800 | 11850 | 19980 | 24900 | 27680 |
| Operating System | Manual and Remote control |
Manual and Remote control |
Manual control | Manual control | Manual control |
Product transaction information:
| Minimum order quantity | 1 set |
| Price | Subject to the contract |
| payment method | Subject to the contract |
| Delivery period | Subject to the contract |
| standard packaging | based on customer's needs |
product description:
PD series pipe pulling machine is auxiliary equipment for drilling rig and casing construction and ground connecting wall construction in various rock and soil drilling and tunneling projects. It is suitable for full-rotary drilling rigs or rotary drilling rigs for casing follow-up cast-in-place piles, occlusal piles, and jet drilling Projects that are constructed using follow-pipe drilling technology, such as cable entry holes, anchorage holes, and underground continuous wall retaining pipes, are used for pulling and pulling drill pipes and drill pipes. It can also be used to extract casings and drill pipes in the handling of various drill tool accidents.
Features:
1. Simple and compact structure, safe and reliable, flexible response, simple and convenient operation and maintenance.
2. The PD series products cover two-column, three-column and four-column products, and customers have a large choice of space according to the construction conditions.
3. Select domestic well-known military industry brand synchronization valve, with good synchronization performance for lifting and lowering.
4. Use independent high-pressure pumping station
5. Two operating modes, manual and remote control, save labor costs. With the combined design of large piston rod and small cylinder diameter, the pulling force is large and the pulling speed is fast.

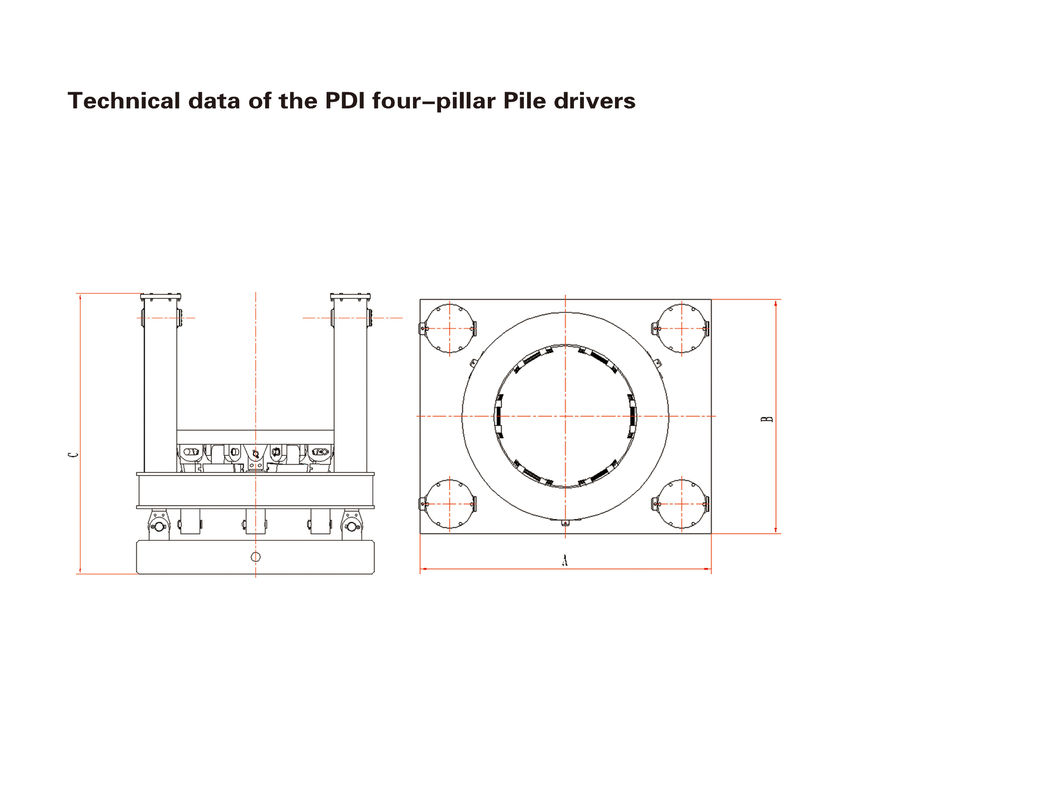

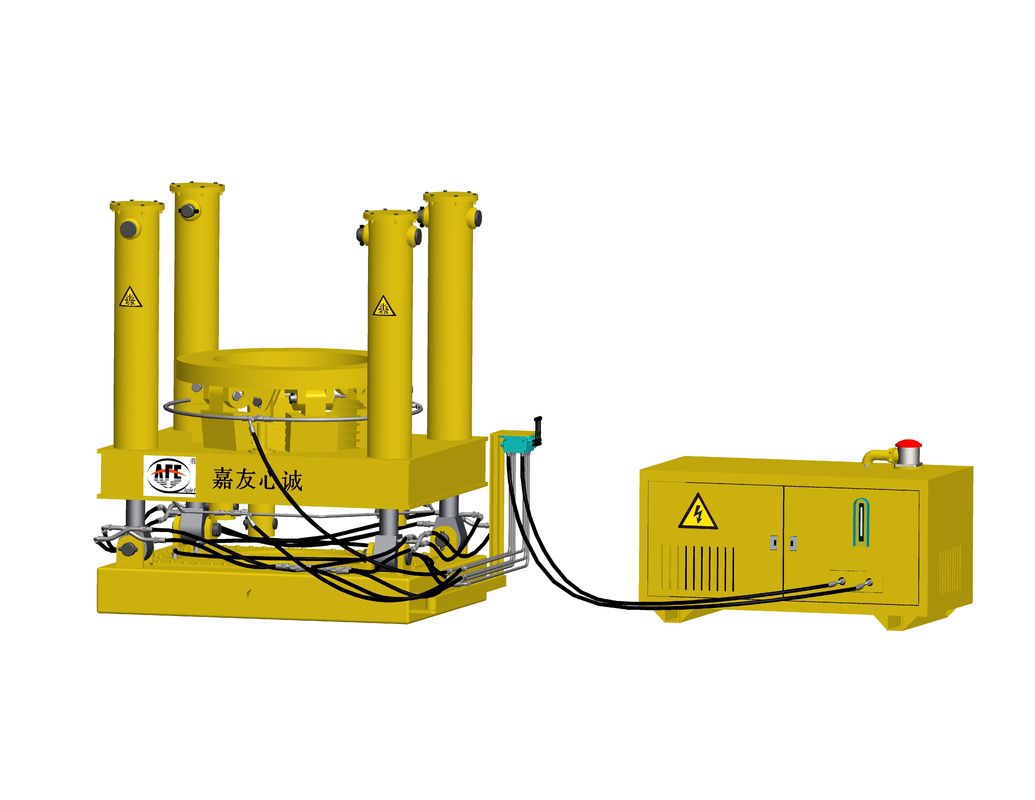

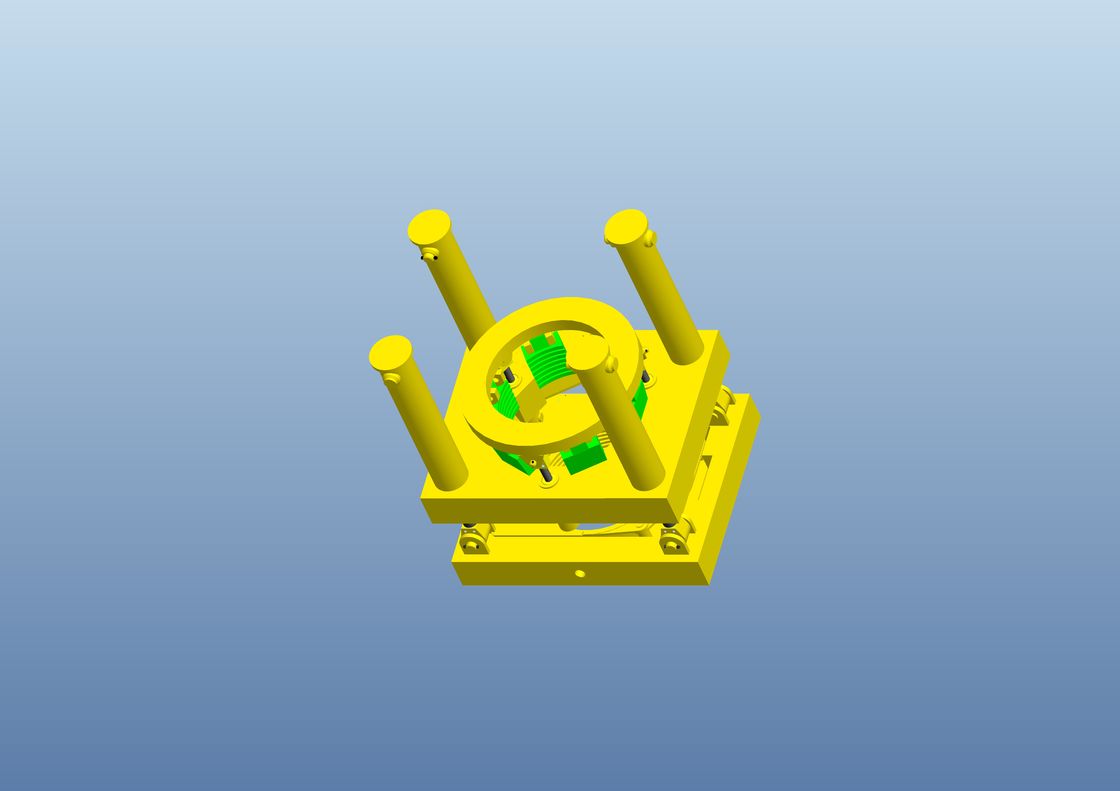

Equipment schematic diagram:
Packaging & Delivery:
Quantity(Sets):≥1
