Place of Origin:
HeBei China
Brand Name:
JYXC
Certification:
ISO9001 quality management system certification
Model Number:
AFECZX
Contact Us

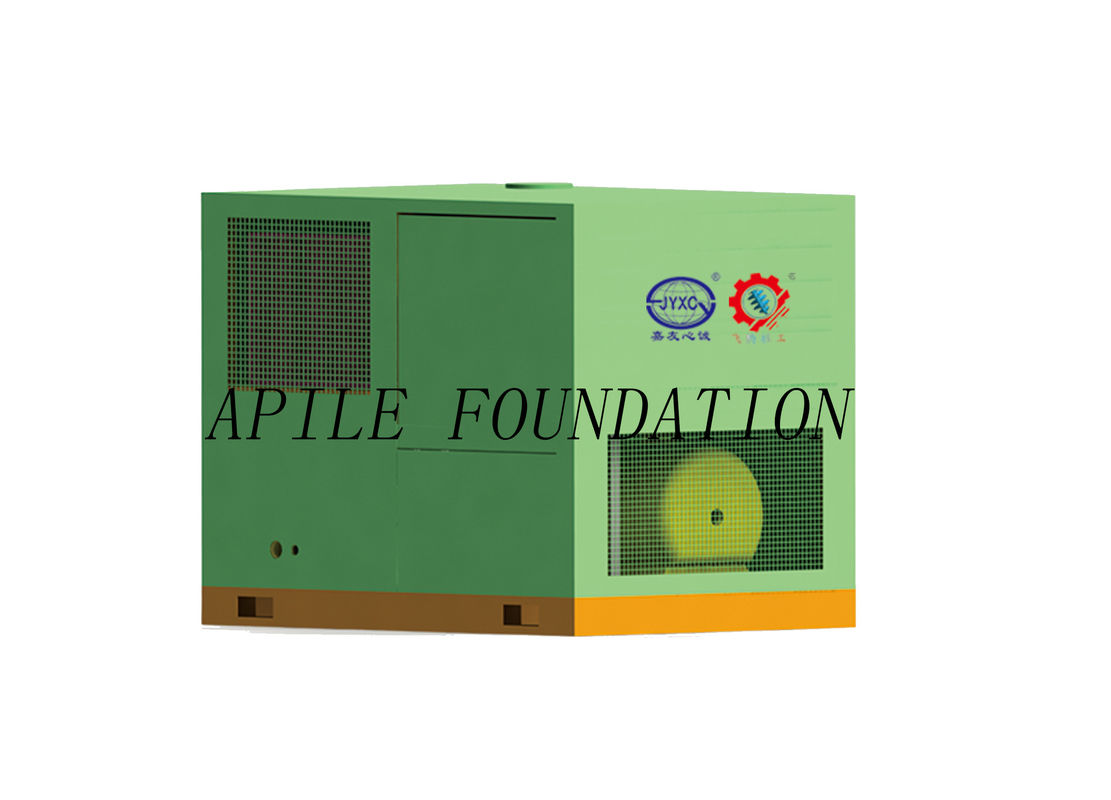

Civil Construction Pile Drilling Rig PSD Type Electric Hydraulic Pump Station
PSD Type Electric Hydraulic Pump Station
Product parameters:
| Model | PSD240 | PSD320 | PSD500 |
| Service substance | 32# or 34# antiwear hydraulic oil | 32# or 34# antiwear hydraulic oil | 32# or 34# antiwear hydraulic oil |
| Engine | Y2-225S-4 | Y2-355M-4 | Y2-315L2-4*2 |
| Power (Kw) | 37 | 90 | 75*2 |
| Rotation rate (Rpm) | 1460 | 1480 | 1480 |
| Output flow (l/min) | 240 | 320 | 250*2 |
| Max.Operation pressure (Bar) | 320 | 320 | 320 |
| Hydraulic tank capacity (L) | 470 | 1500 | 2000 |
| Outline dimension (mm) | 1560*1200*1550 | 1950*1200*1680 | 2150*1200*1750 |
| Wireless remote control distance (m) | 200 | ||
| Oil-free weight (Kg) | 1150 | 1400 | 1520 |
| Suitable model | PB380B PB4005-PB500S |
PB219A | PB219A |
| Minimum order quantity | 1 set |
| Price | Subject to the contract |
| payment method | Subject to the contract |
| Delivery period | Subject to the contract |
| standard packaging | based on customer's needs |
Features:
1. A good hydraulic helper for industrial and civil construction, perfectly matched with the pile cutter, economical;
2. Intelligent design, wireless and wired system operation, easy switching;
3. The pile cutting equipment is driven by electricity, which is convenient and quick;
4. Design accessories are selected high-quality products, the quality is trustworthy.
