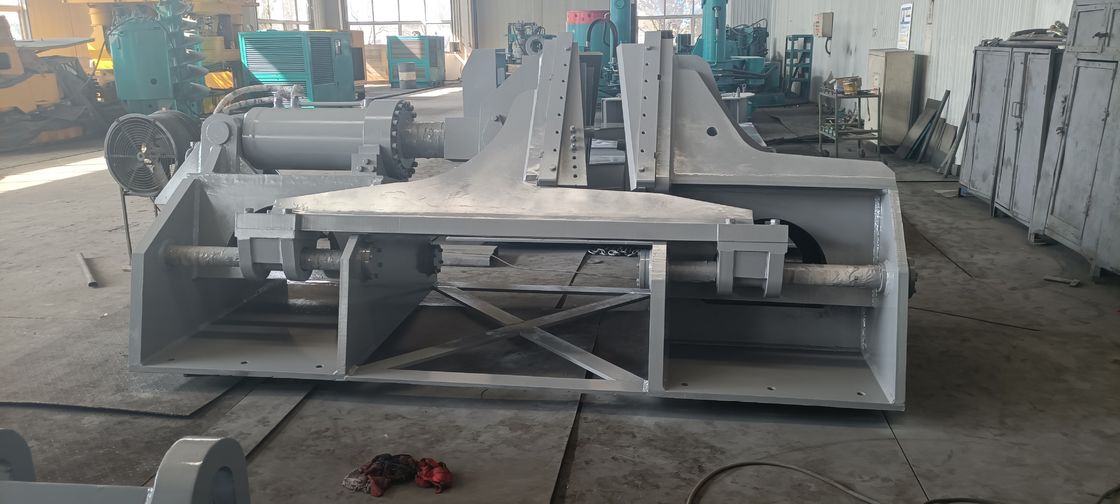

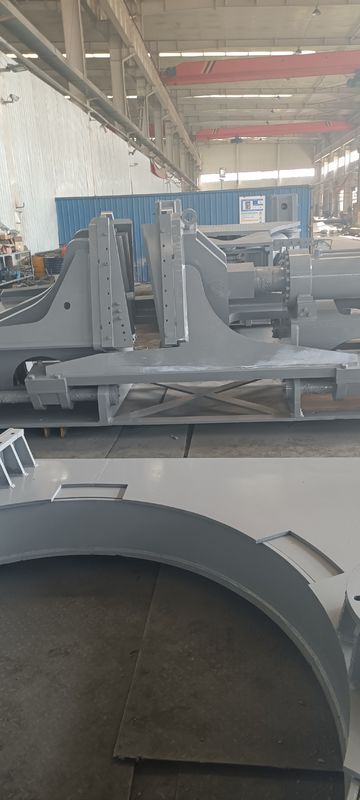

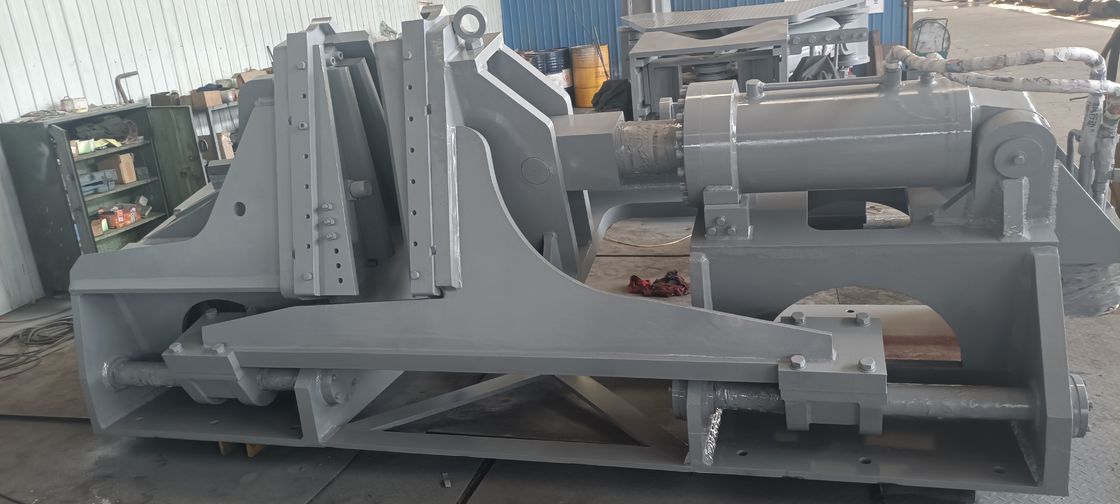

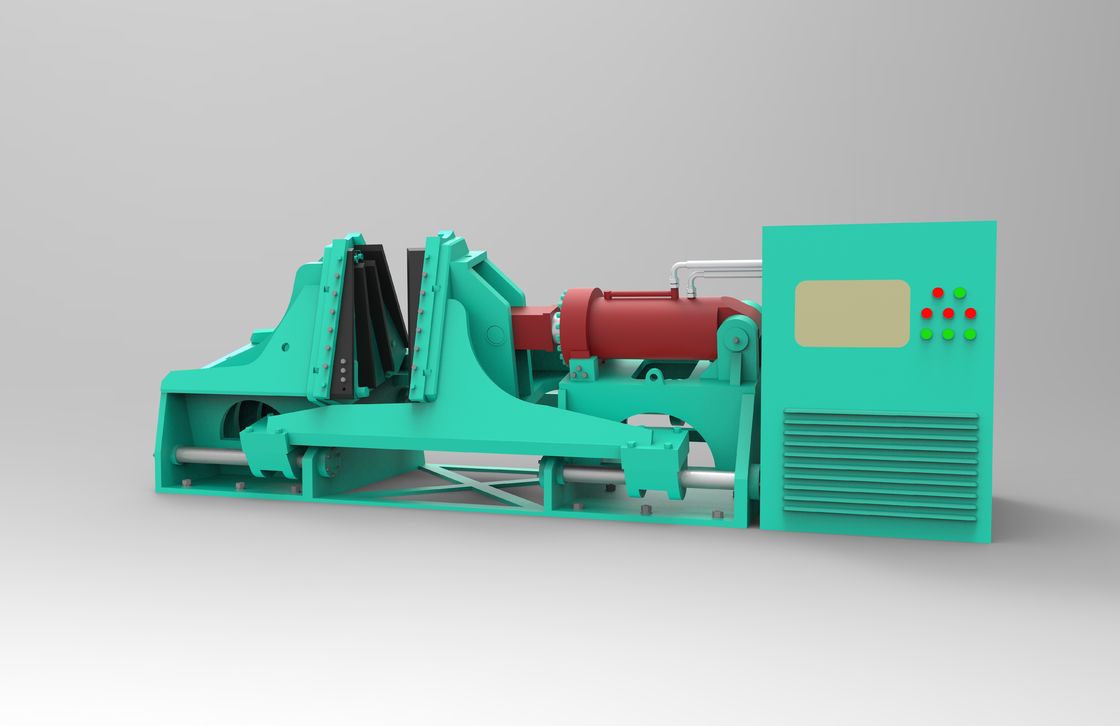

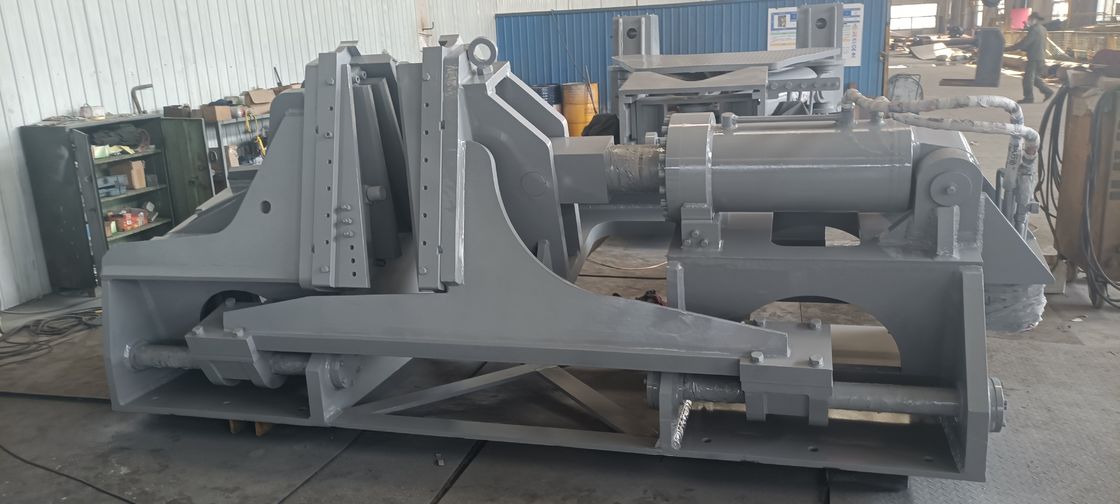

Spiral Blade Cold Forming Machine
Product Description
Spiral blade forming machine is a machine for cold pressing large diameter and high thickness blades. The equipment holds the round blank in the position of the jaws and replaces the forming plate to press the blades with different outer diameters and pitch.
| Model | YPJ18 |
| Operating pressure | 32Mpa |
| Clamping Force(KN) | 1600 |
| Stroke(mm) | 300 |
| Max.thickness(mm) | 40 |
| Maximum diameter(mm) | 1800 |
| Outline dimension (mm) | 3390*1400*1450 |
| Weight(T) | 7339kg |
