Place of Origin:
HeBei, China
Brand Name:
JYXC
Certification:
ISO9001 quality management system certification
Model Number:
PDI
Contact Us

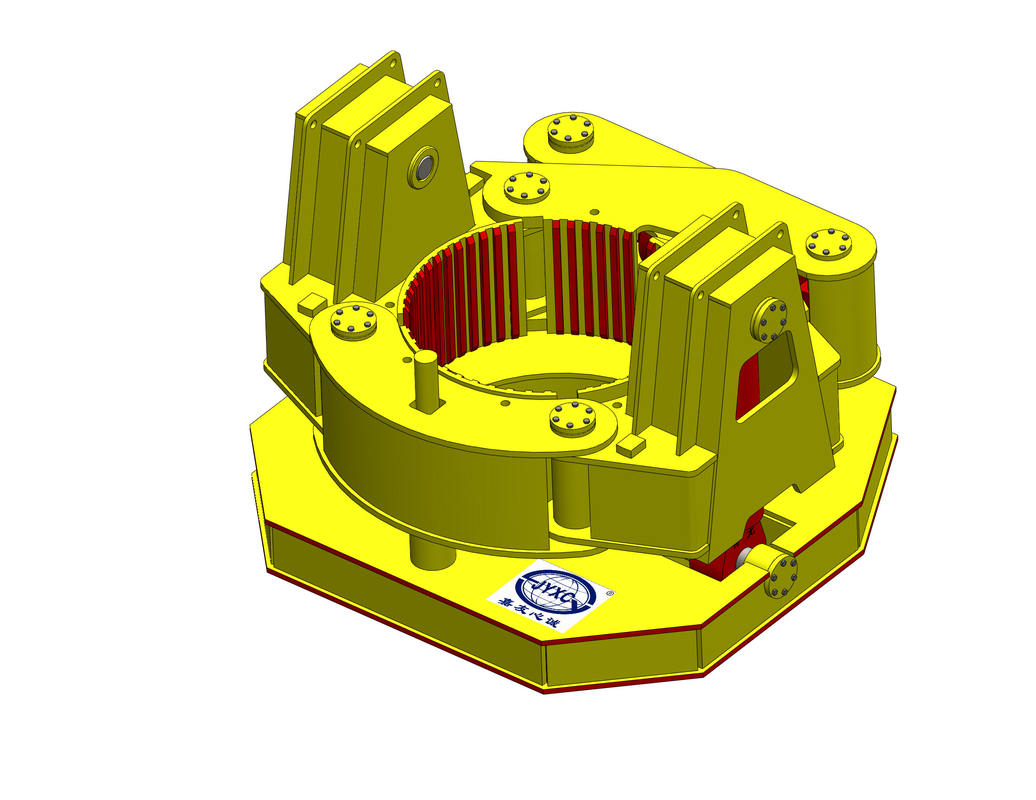

800mm Casing Puller / Casing Extractor Hydraulic Type For Double Wall Casing Pipe
Purpose
The PDI series pile drawers are the auxiliary equipment for drilling and casing construction in various geotechnical drilling and excavation engineering. It is suitable for casing rotary drilling machine or rotary drilling machine, casing drilling caisson pile, occlusal pile, rotary jet drilling, micropile and anchor drilling and lifting or drawing of retaining pipe of concrete diaphragm wall etc. It can also be used for casing and drill pipe in accident treatment of various drilling tools. "
| PDI pile drawers | PDI80 | PDI100 | PDI120 |
| Max. casing diameter | φ800 | φ100 | φ1200 |
| Max. operating pressure(Bar) | 320 | 320 | 320 |
| Lifting Force(KN) | 1520 | 1880 | 1880 |
| Lifting Stroke(mm) | 1000 | 1000 | 1000 |
| Clamping Force(KN) | 942 | 1140 | 1140 |
| A*B*C(mm) | 1923*1523*2247 | 2403*2323*2410 | 3100*2450*1820 |
| Weight(Kg) | 8000 | 10000 | 11600 |
| Operating System | Manual and Remote control | Manual and Remote control | Manual and Remote control |
Advantage
1. Detachable counterweights from 4 to 10 tons are available as required.
2. Reduce the transportation cost of the counterweight made of cast-in-place concrete.
3. Stable work The combined action of the counterweight frame and the ground anchor firmly fixes the bottom of the oscillator on the ground, reducing the reaction force of the oscillator to the drilling rig.
