Place of Origin:
HeBei, China
Brand Name:
JYXC
Certification:
ISO9001 quality management system certification
Model Number:
PB380B
Contact Us
| Module number | Applicable pile diameter(mm) | Platform tonnage(T) | Weight(T) |
Height for breaking pile each time(mm) |
Oil Flow (L/min) |
| 6 | φ500 | ≥10 | 1.6 | ≤300 | 160 |
| 8 | φ600 | ≥20 | 2.2 | ≤300 | 200 |
| 9 | φ700 | ≥20 | 2.43 | ≤300 | 230 |
| 10 | φ800-φ900 | ≥25 | 2.66 | ≤300 | 260 |
| 11 | φ1000 | ≥25 | 2.89 | ≤300 | 290 |
| 12 | φ1100 | ≥25 | 3.12 | ≤300 | 320 |
| 13 | φ1200 | ≥28 | 3.35 | ≤300 | 350 |
| 14 | φ1300-φ1400 | ≥28 | 3.58 | ≤300 | 380 |
| 15 | φ1500 | ≥30 | 3.81 | ≤300 | 410 |
| 16 | φ1600 | ≥30 | 4.04 | ≤300 | 440 |
| 17 | φ1700 | ≥35 | 4.27 | ≤300 | 470 |
| 18 | φ1800 | ≥35 | 4.5 | ≤300 | 500 |

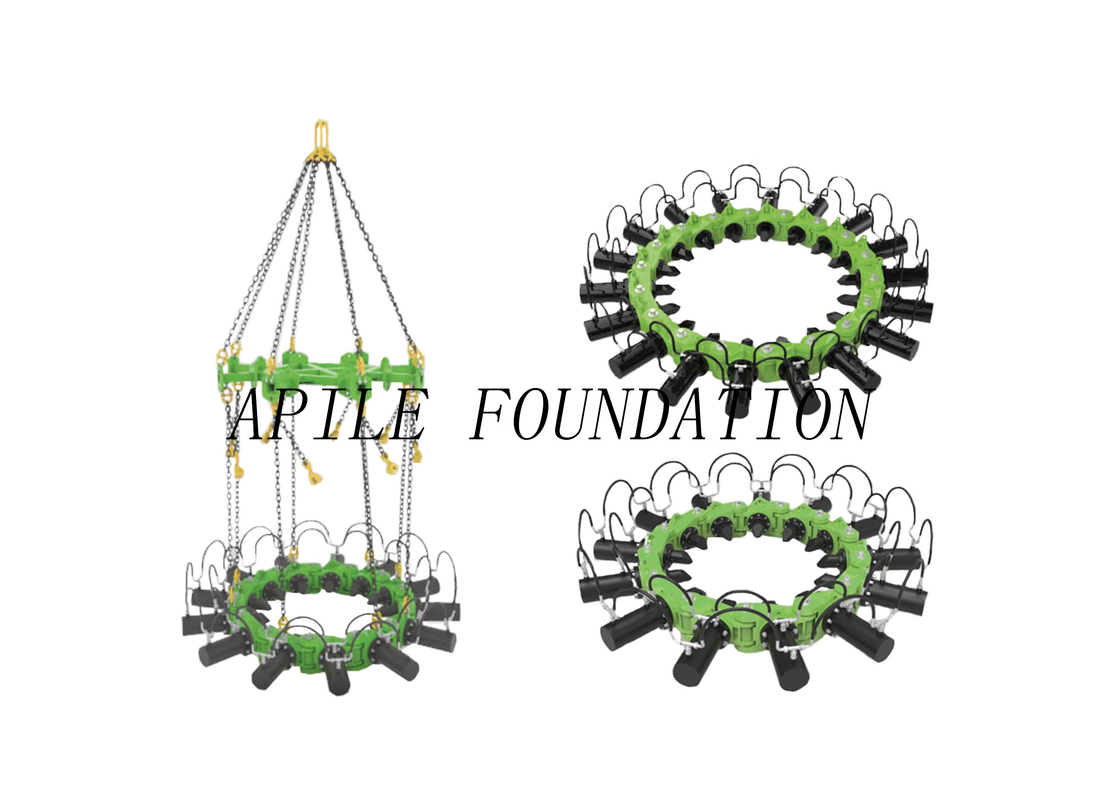

Characteristics of the PB Series pile breakers:

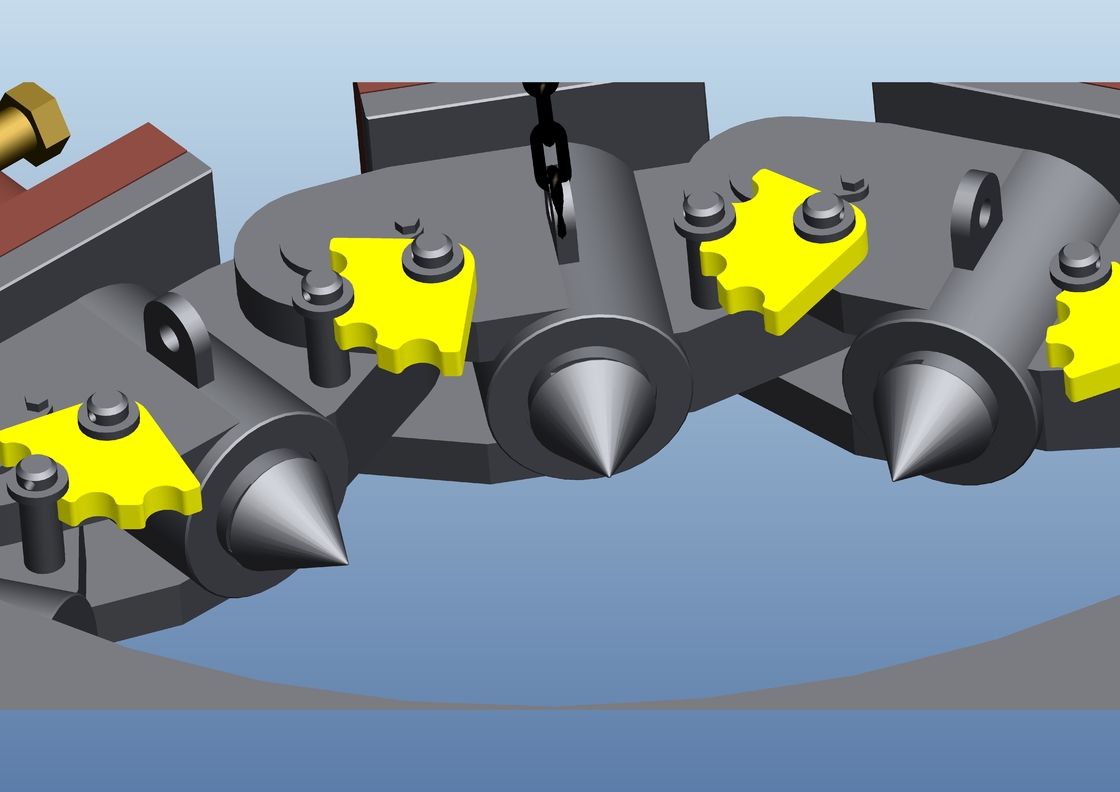

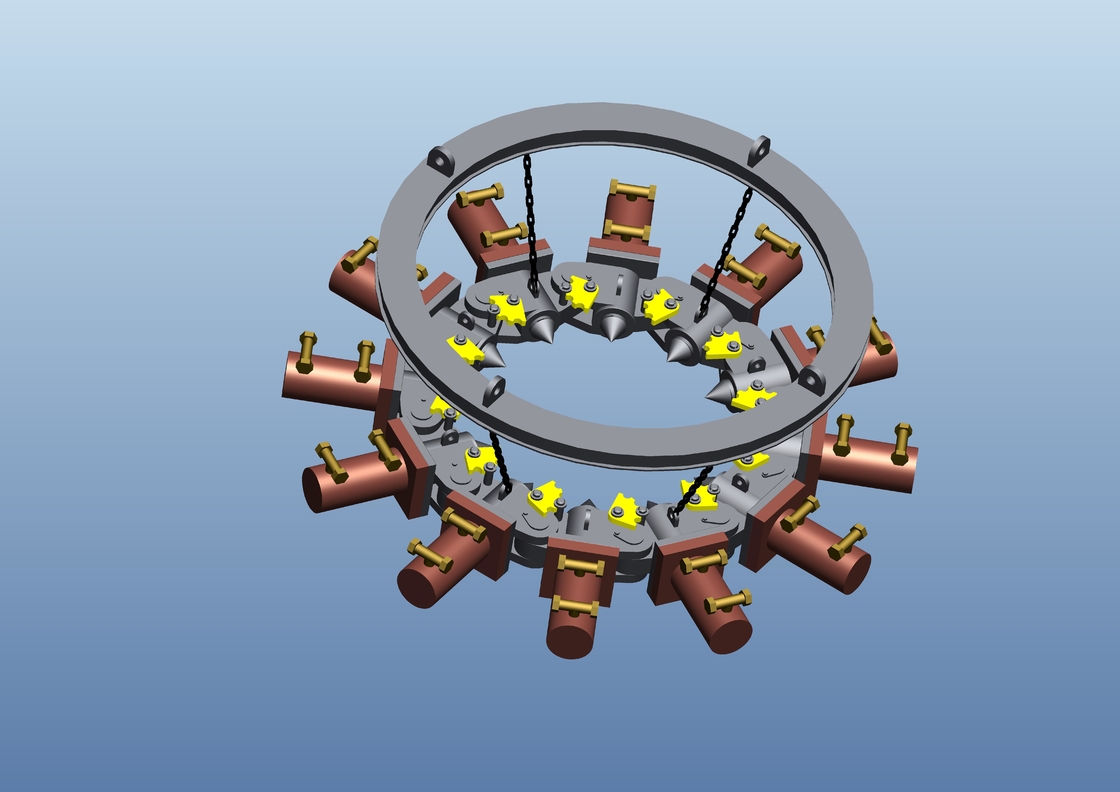

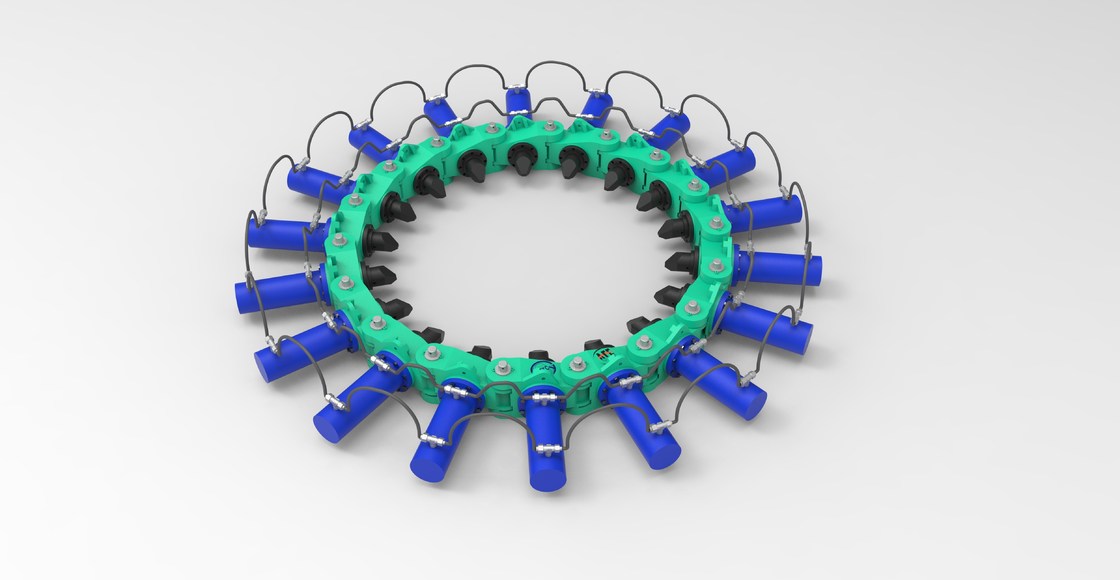

1.The PB series pile breaker adopts modular design. It can intercept different pile diameter by adjusting the number of modules to increase or decrease according to the variation of pile diameter.2.Easy operation and maintenance, greatly reduce construction costs. The hinge connection between module and module is easy to disassemble and assemble and easy to maintain. 3. Each module is controlled by a separate hydraulic cylinder, and the hydraulic pipeline is connected to realize synchronous action, and the same cross section is occluded at the same time, so that the pile body in the section can be broken, and then the broken pile head can be transferred directly without manual cleaning. The work does not disturb the people and damage the pile body and equipment. 4.The main components are made of special materials and processes, and the normal service life is up to 20 years.5.The cutter pile has a wide range of diameters. Diameter range of truncated pile from ¢200mm-¢2500mm.
Product advantage:
