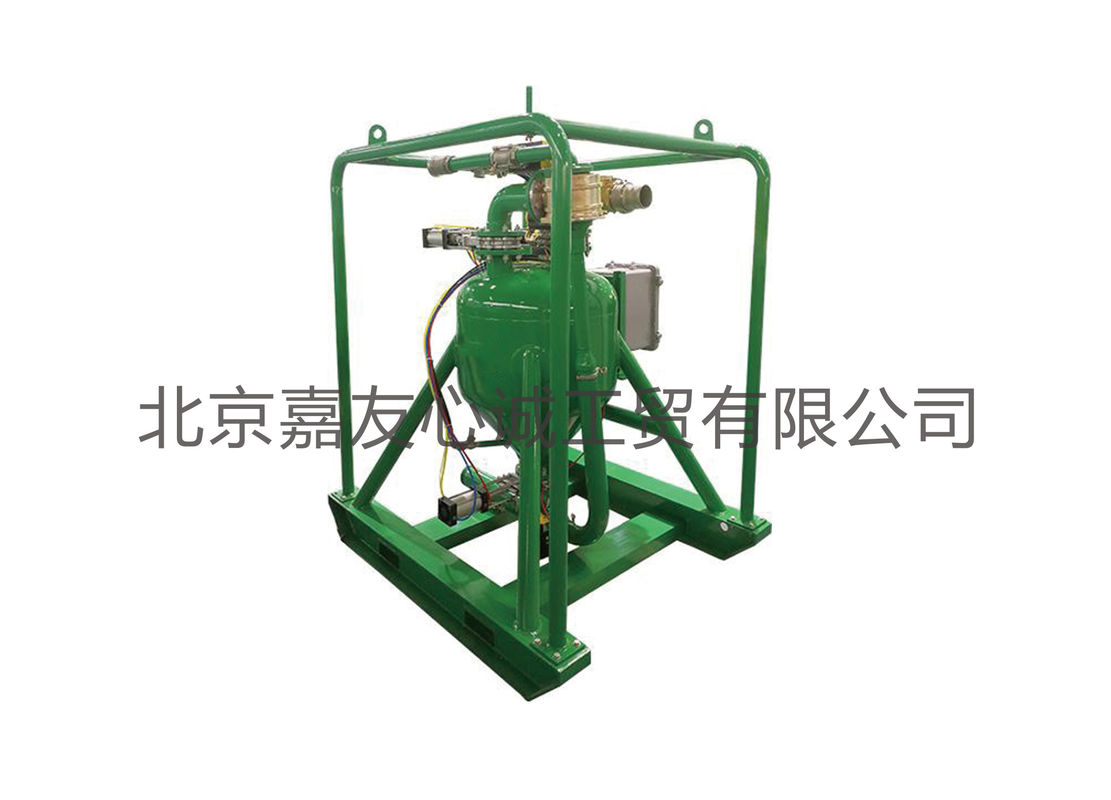

85 Kpa Sludge Treatment Equipment Portable Sludge Vacuum Pump
Sludge Treatment Equipment Sludge Vacuum Pump Maintenance Rate Is Low
Product introduction:
The sludge vacuum pump is a vacuum pump with high load and strong suction. It is also called solid transfer pump or drill cutting pump. Its unique structure makes it work in the most difficult environment, and the maintenance rate is low. More than 80% of the material and high specific gravity material. It has the following features: The high efficiency unit can produce up to 25 inches of HG (mercury) vacuum for pumping material with high airflow, with virtually no wear parts. The pump body is compact and suitable for the transport of high-density materials. It is often used for the transportation of drilling cuttings and the transportation of oily sludge.
Application area:
Our sludge vacuum pump transport material category:
Cuttings discharged from waste mud and vibrating screen
Mud and tailings
Mud pit cleaning
Hazardous waste recycling
Sludge, tank bottom slag
Bilge clearance of the transport vessel
Material handling in bulk tanks and silos
Sand, fine sand and fracturing sand
Diatomite
Animal droppings

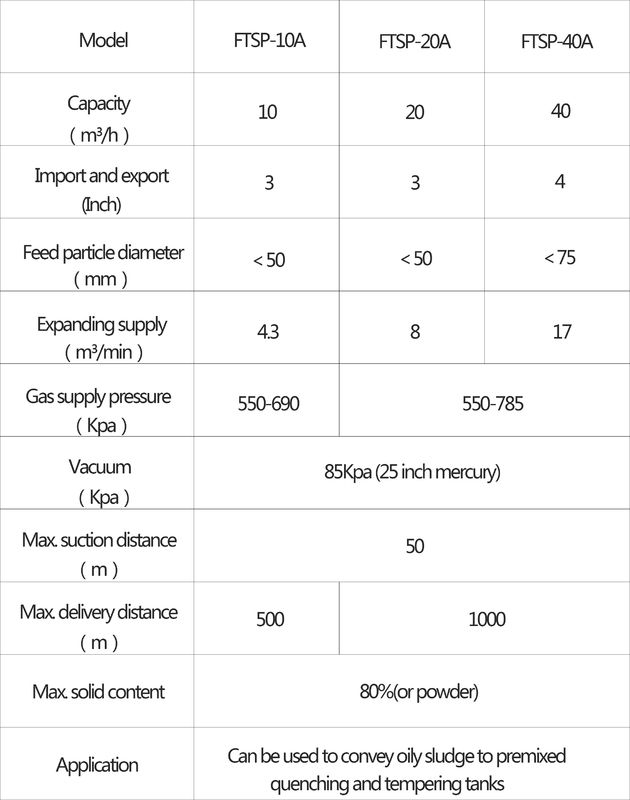

Technical Parameters:
| Model | FTSP-10A | FTSP-20A | FTSP-40A |
| Capacity (m³/h) | 10 | 20 | 40 |
| Import and export (inches) | 3 | 3 | 4 |
| Feed particle diameter(mm) | ＜50 | ＜50 | ＜75 |
| Expanding supply(m³/min) | 4.3 | 8 | 17 |
| Gas supply pressure(Kpa) | 550-690 | 550-785 | |
| Vacuum(Kpa) | 85Kpa | ||
| Max. suction distance(m) | 50 | ||
| Max. delivery distance(m) | 500 | 1000 | |
| Max. solid content | 80% | ||
| Application | It can be used for conveying oily sludge to premix conditioning tank | ||
