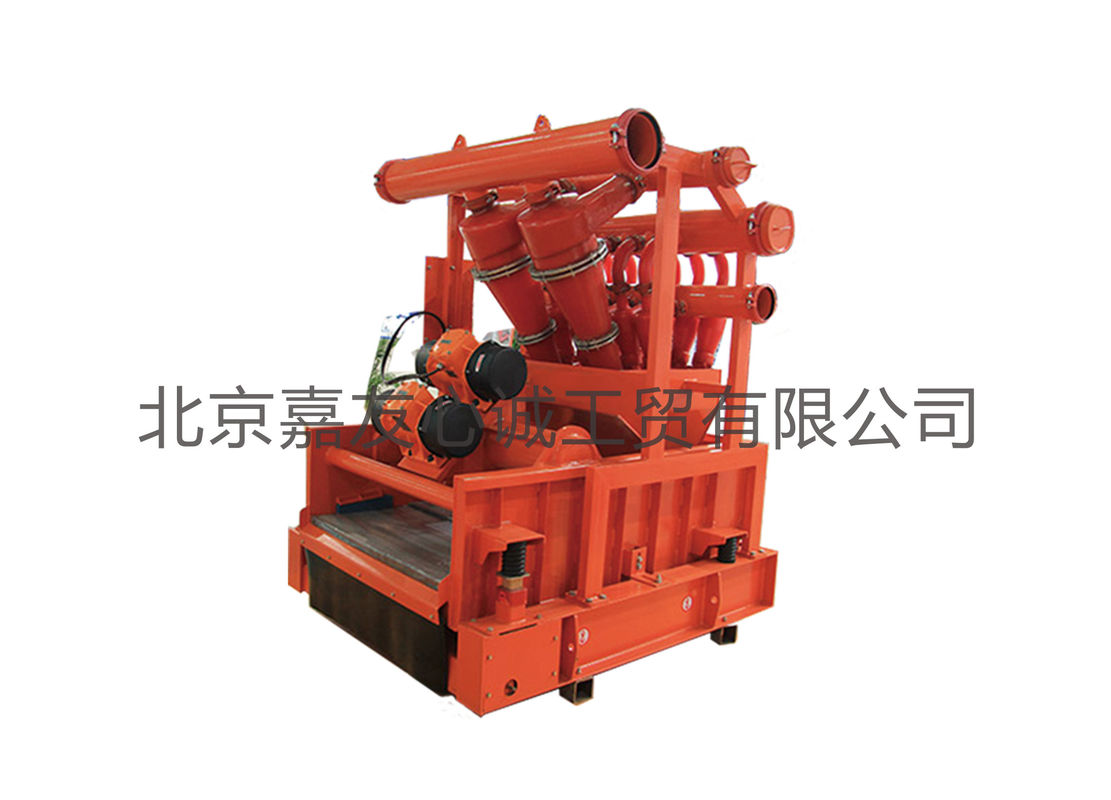

85 DBA 20hp Linear Motion Shale Shaker Desilting Integrated Machine
Product name: Desilting Integrated Machine
Product Description:
The mud cleaner is also called the integrated desanding and desliming machine. The mud cleaner plays a connecting role in the entire drilling fluid solids control system, and provides guarantee for the better and more efficient operation of the centrifuge. In order to meet the increasingly stringent requirements of modern drilling, our company combines advanced mud cleaner manufacturing technology at home and abroad to launch a new type of mud cleaner.
Sand removal machine (large displacement) Technical parameters:
| Model | FTZJ103-2S12N | FTZJ104-2S12N | FTZJ70-3S16N | FTZJ70-3S | FTZJ70-16N |
| Capacty |
240m3/h (1056GPM) |
240m3/h (1056GPM) |
360m3/h (1584GPM) |
360m3/h (1584GPM) |
360m3/h (1584GPM) |
| Matdhing Shaker | FTZS103 | FIZS104 | FIZS70-3P | FIZS70-3P | F1ZS70-3P |
| Sander hydrocydone | 2*10' (250mm) | 2*10" (250mm) | 3*10" (250mm) | 3*10" (250mm) | / |
| Silter hydrocydones | 12*4"(100mm) | 12*4" (100mm) | 16*4"(100mm) | / | 16*4"(100mm) |
| Matching Pump | 55kw(73hp) | 55kw(73hp) | 75kw(100hp) | 75kw(100hp) | 75kw(100hp) |
| Rated Motors Outpu |
t 15kw(20hp)* 2(OLL) |
15kw(20hp)* 2(Martin) |
15kw(20hp)* 2(OLI) |
15kw(20hp)* 2(OLI) |
15kw20hp)* 2(OLI) |
| Output Force | 8.0Gs | 85Gs | 75Gs | 75Gs | ≤75Gs |
| Operating Temperature | 30°C(86°F) | 30°℃(86°F) | 30°℃(86°F) | 30°℃(86F) | 30°℃(86F) |
| DesignRange |
-40-50C (-40-122°F) |
-40-50°C (-40-122°F) |
-40-50°C (-40-122°F) |
-40-50°C (-40-122°F) |
-40-50°℃ (-40-122°F) |
| Noise Data | 75-85dBA | 75-85dBA | 75-85dBA | 75-85dBA | 75-85dBA |
| Sareen Qty | -1°~+5° | -1°~+5° | -1°~+5° | -1°~+5° | -1°~+5° |
| Sareen material |
Composite /metalfame |
Composite /metalfame |
metalfiame | metalfiame | metalfame |
| Sareensize | 850*1250mm | 850*1250mm | 700*1250mm | 700*1250mm | 700*1250mm |
| SareenQty | 3pcs | 4pcs | 3pcs | 3pcs | 3pcs |
| Flitering Area | 21㎡ | 273㎡ | 262㎡ | 262㎡ | 262㎡ |
| Sareen Mesh |
APIL20 /150/175 |
APIL20 /150/175 |
APIL20 /150/175 |
API120 /150/175 |
AP1150 /175/200 |
| Weight (kg) |
1768 | 1980 | 2230 | 2300 | 2260 |
| Dimension (mm) |
2030* 1965*2240 |
2615* 1965*2240 |
2403* 1965*2240 |
2540* 1950*2250 |
2540* 1950*2000 |
| Power | 220-240v/50Hz,380-415v/50Hz,440-480v/60Hz,575-600v/60Hz | ||||
| Executive standard | UL/ATEX/BV/IADC/JAS-ANZISO9001:2015/CE | ||||
Sand removal machine (small displacement)
| Model | FTZ85-1S8N | FTZJ103-1S8N | FTZJ85-2S12N | FTZJ70-2S12N |
| Capacity | 120m3/h(528GPM) | 120m3/h(528GPM) | 240m3/h1056GPM | )240m3/h(1056GPM) |
| Matching Shaker | FTZS85-2P | FTZS103 | FIZS85-2P | FTZS70-3P |
| Sander hyddocydones | 1*10' (250mm) | 1*10' (250mm) | 2*10' (250mm) | 2*10'(250mm) |
| Silter hydrocydones | 8*4"(100mm) | 8*4" (100mm) | 12*4" (100mm) | 12*4"(100mm) |
| Matching Pump | 30kw(40hp) | 30kw(40hp) | 55kw(73hp) | 55kw(73hp) |
| Rated MotorsOutput | 10kw(135hp)*2(OL) | 15kw(20hp)*2(O11) | 10kw(135hp)2(011) | 172kw(23hp)*2(011) |
| Output Force | ≤7.0Gs | 80Gs | ≤70Gs | ≤75Gs |
| Operating Temperature | 30°℃(86°F) | 30°℃(86°F) | 30°((86F) | 30°((86F) |
| Design Range | -40-50°C(-40-122°F) | -40-50°C(-40-122°F | )-40-50°C(-40-122°F) | -40-50C(-40-122°F) |
| Noise Data | 75-85dBA | 75-85dBA | 75-85dBA | 75-85dBA |
| Sareen Qty | -1°~+3° | -1°~+5° | -1°~+3° | -1°~+5° |
| Screen material | Metal frame | Vintage materias /metal frames |
Metal frame | Metal frame |
| Sareensize | 850*1250mm | 585*1165mm | 850*1250mm | 700*1250mm |
| Sareennumber | 2pcs | 3pcs | 2pcs | 3pcs |
| Sareenarea | 2.1㎡ | 21㎡ | 2.1㎡ | 2.63㎡ |
| Sareen Mesh | API120/150/175 | API120/150/175 | API120/150/175 | API120/150/175 |
| Weight(kg) | 1580 | 1792 | 2150 | 2350 |
| Dimension(mm) | 1975*1884*1585 | 2030*1965*1585 | 1975*1884*2195 | 2403*1884*2195 |
| Power | 220-240v/50Hz,380-415v/50Hz440-480v/60Hz,575-600v/60Hz | |||
| Executivestandard | UL/ATEX/BV/IADC/JAS-ANZISO 9001:2015/CE | |||
Product transaction information:
| Minimum order quantity | 1 set |
| Price | Subject to the contract |
| Payment method | Subject to the contract |
| Delivery period | Subject to the contract |
| Standard packaging | based on customer's needs |
Features of Mud Cleaner:
1. The mud cleaner has complete models and specifications. The mud cleaner can be designed and configured according to the on-site mud environment or customer requirements.
2. The mud cleaner is made of high-quality steel, which is durable and corrosion-resistant, and has a long service life.
3. The cleaner is easy to operate and maintain, and the vulnerable parts are interchangeable with international brands.
4. Use ANSYS finite element analysis to optimize the structure design to meet the ergonomic design of operation to the greatest extent.
5. Adopt American Martin, italvibras, Oli brand excitation motors.
6. The selection of electrical components adopts Siemens, Schneider, ABB and other internationally renowned brands.
7. The degreasing and desilting cyclone is made of highly wear-resistant, pure polyurethane material, which can be interchanged with internationally renowned similar products.
Application areas:
It is suitable for many fields and industries such as oil drilling, trenchless and shield tunneling.
