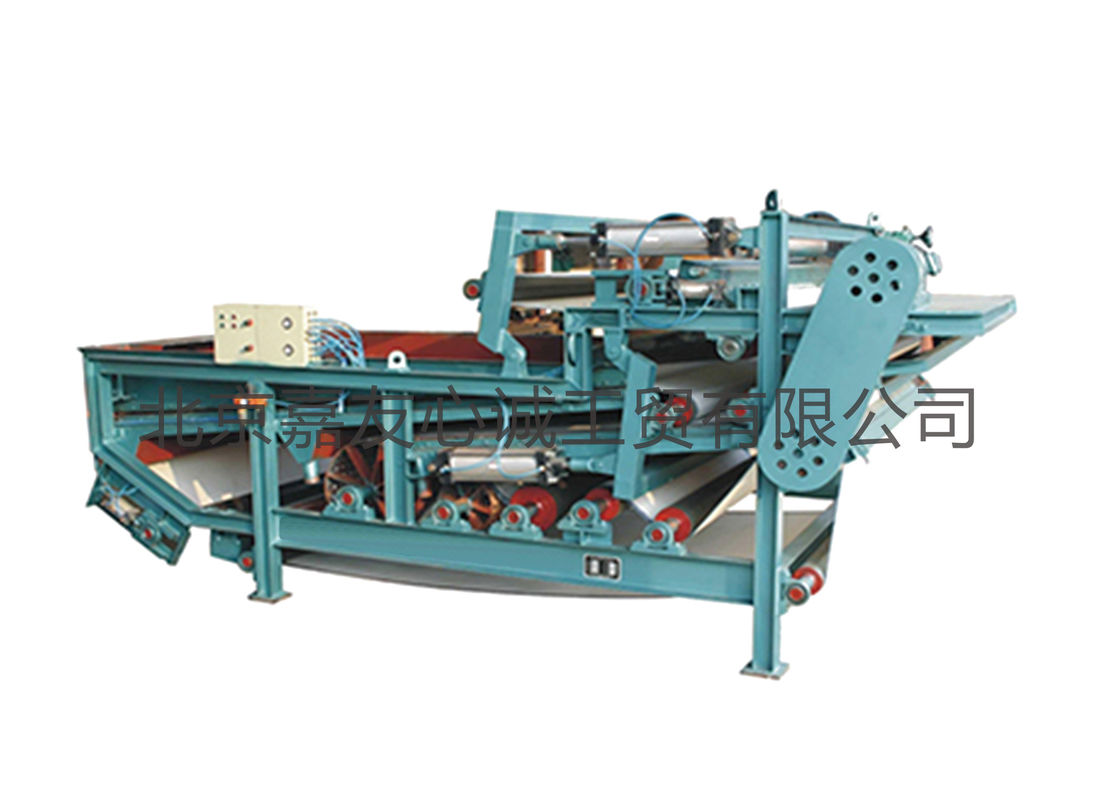

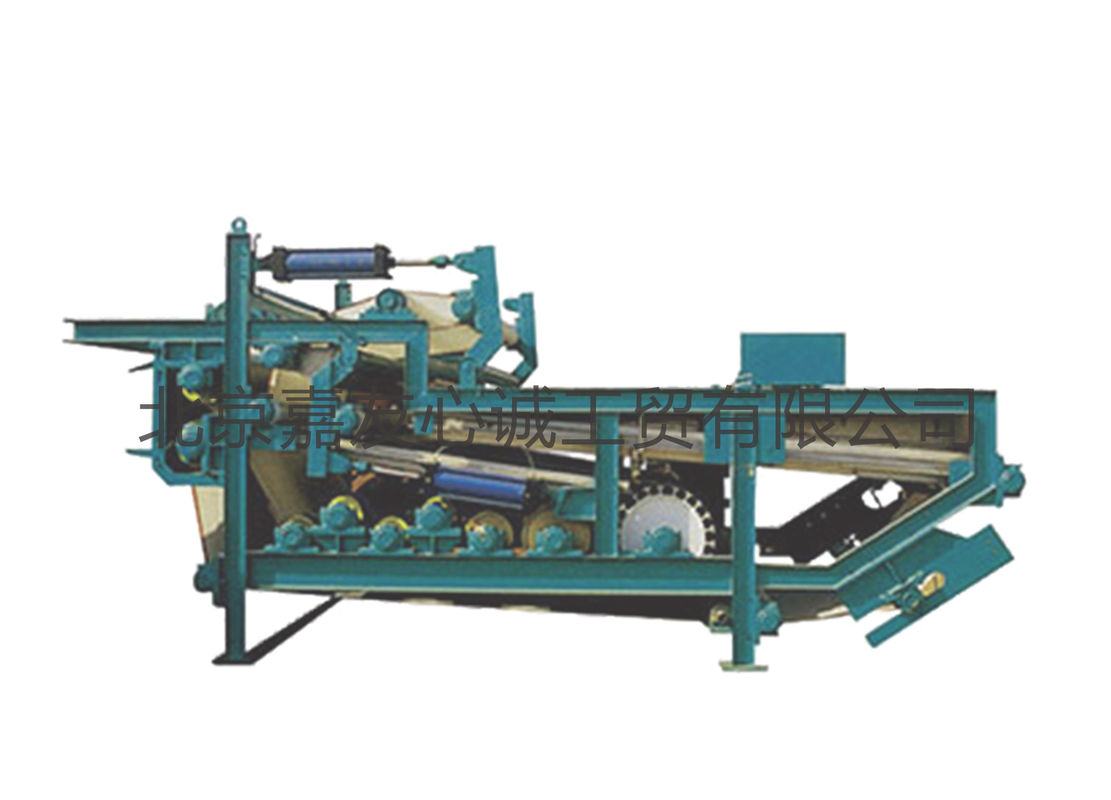

Low Energy Automatic Control Belt Filter Press For Sludge Dewatering
Product name: Belt Filter Press
Product Description:
The belt filter press is a kind of water treatment equipment that has been successfully developed after digestion and absorption. It can continuously filter a large amount of sludge. The product is made of high-strength materials, has large processing capacity and high dehydration efficiency. Long life and other characteristics are widely used in solid-liquid separation in various industries. The bearings are equipped with long service life and high-quality filter belts are used to fully ensure the performance and quality of the filter press.
Technical parameters:
| Model | ft1000 | ft1500 | ft2000 | ft2500 | ft3000 | |
| Strip Width (mm) | 1000 | 1500 | 2000 | 2500 | 3000 | |
| Sludge Treatment Capadty (m3/h) | 10~15 | 15~20 | 20~25 | 25~30 | 30~40 | |
| Filter Cake Moisture Content | 80% | |||||
| Sludge Recovery Rate | 95% | |||||
| Filter Tension (kN/m) | 2~5 | |||||
| Linear Speed of Press Filter Belt (m/min) | 15~8 | |||||
| Linear Speed of Press Filte (m/min) | 3~10 | |||||
| Washing Water Consumption (m2) |
Reuse Water | <11 | <16 | <21 | <26 | <30 |
| Water Purification | <4.8 | <6.9 | <9 | <117 | <16.1 | |
| Flushing Pressure (Mpa) | Reuse Water | ≥0.5 | ||||
| Water purification | 20.5 | |||||
| Power of Press Belt Motor (Kw) | 1.5 | 1.5 | 2.2 | 3 | 3 | |
| Power of Exaitation Motor (KW) | 0.75 | |||||
| Mainframe Weight (Kg) | 4100 | 5100 | 6200 | 7500 | 8600 | |
| Dimensions (m) | 4.3*1.7*2.0 | 4.3*2.2*2.0 | 4.3*2.7*2.0 | 4.3*3.2*2.0 | 4.3*3.7*2.0 | |
Product transaction information:
| Minimum order quantity | 1 set |
| Price | Subject to the contract |
| Payment method | Subject to the contract |
| Delivery period | Subject to the contract |
| Standard packaging | based on customer's needs |
Features of belt filter press:
1. Automatic control and continuous operation.
2. Low energy consumption and long service life.
3. High dehydration efficiency and high solid content of mud cake.
4. Easy to manage and convenient to maintain.
5. Low noise and less chemicals.
6. Economical and reliable, with a wide range of applications.
Application areas:
1. Suitable for sludge dewatering in the upper solids control system;
2. It can be used for dehydration in industrial fields such as starch and juice processing;
3. It is suitable for the dehydration of metallurgical sludge such as blast furnace, converter and sintering;
4. Application of sludge in papermaking, leather making, animal products, aquatic products, chemical and food wastewater.
