Place of Origin:
HeBei China
Brand Name:
JYXC
Certification:
ISO9001 quality management system certification
Contact Us

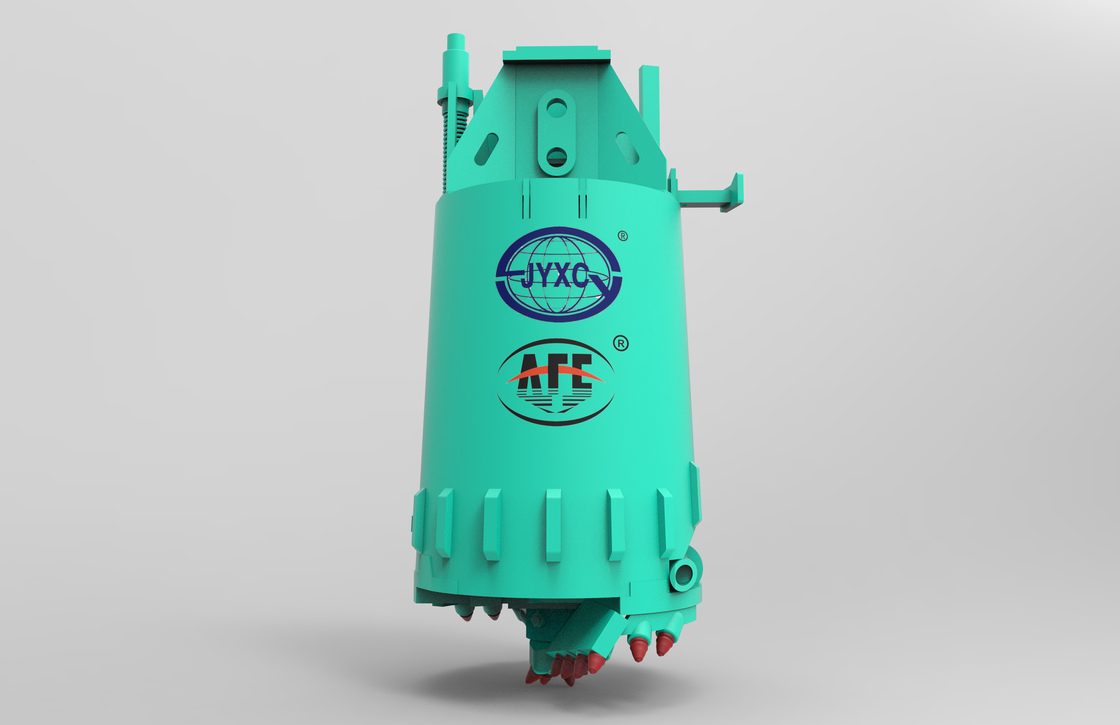

Professional 400-3000mm diameter design, according to the diameter of the drill bucket and the type of drilling rig and the drilling strata will be designed for straight or conical cylinder, the opening and closing mechanism is mainly mobile opening and closing, the bottom plate is double bottom plate, the earth inlet is double door. Double door suitable for drilling general sand and small diameter gravel layer. High quality picks and reasonable drilling angles are used to drill efficiently.
| Diameter(mm) | Casing Specifications | Cyl.thickness(mm) | Bottom thickness(mm) | Height(mm)h1 | Height(mm)h2 | Weight(kg) | SBLS FZ | SBLSF FZ | SBLSF R | SBLSF-K R |
| 520 | 620/540 | 12 | 40 | 1200 | 1470 | 600 | 4 | 4 | 6 | 12 |
| 600 | 750/670 | 12 | 40 | 1200 | 1470 | 670 | 4 | 4 | 6 | 12 |
| 700 | 880/800 | 16 | 40 | 1200 | 1470 | 750 | 6 | 6 | 8 | 16 |
| 780 | 880/800 | 16 | 40 | 1200 | 1470 | 970 | 6 | 6 | 8 | 16 |
| 900 | 1000/920 | 16 | 40 | 1200 | 1470 | 1050 | 8 | 8 | 10 | 22 |
| 1000 | 1180/1100 | 16 | 40 | 1200 | 1470 | 1130 | 8 | 8 | 10 | 22 |
| 1060 | 1180/1100 | 16 | 50 | 1200 | 1470 | 1250 | 8 | 8 | 10 | 24 |
| 1180 | 1300/1220 | 16 | 50 | 1200 | 1470 | 1750 | 12 | 12 | 10 | 28 |
| 1350 | 1500/1400 | 16 | 50 | 1200 | 1470 | 1850 | 14 | 14 | 10 | 28 |
| 1500 | 1650/1550 | 16 | 50 | 1000 | 1270 | 2450 | 16 |
16 |
10 | 34 |
| 1800 | 2000/1880 | 16 | 50 | 1000 | 1270 | 2780 | 20 | 20 | 18 | 42 |
Technical parameters:
Note: it can be customized according to customer requirements.
Service:
Jiayou Xincheng VIP service relieves your worries:
Troubleshooting within 24 hours, the responsible engineer will reply to you within 15 minutes, and provide simple troubleshooting via phone or email; if the problem cannot be resolved via phone guidance, we will issue follow-up troubleshooting solutions within 24 hours to solve your worries .
If you need my help, please feel free to contact us!
• Professional factory: My factory has more than 10 years of experience.
• Our prices are competitive.
• We aim at quality.
• Fast delivery for our customers.
• We pursue long-term business relationships.
Q&A:
Q: How about your offer?
A: First of all, we are a factory, not just a trading company. Our price is not the cheapest in the industry, but we will quote the most reasonable price according to customer requirements.
Q: How about your delivery time and packaging?
A: We will deliver the goods in strict accordance with the time agreed in the contract, and will pack according to customer needs.
Q: How is your service?
A: 1. Quick feedback
2. Guarantee punctual delivery according to the agreed time
3. Perfect after-sales system
Q: How can I believe what you say?
A: Seeing is believing. We are waiting for your arrival at any time. I will take you to visit our factory, hoping to have the opportunity to provide you with better service.
