Place of Origin:
HeBei China
Brand Name:
JYXC
Certification:
ISO9001 quality management system certification
Contact Us
| Specifications |
Tube of high (mm) |
Wall thickness (mm) |
Bottom plate thickness (mm) |
Number of teeth |
Tooth shape |
Weight (kg) |
| φ600 | 1200 | 25+40 | 50 | 8 | Cutter tooth | 740 |
| φ700 | 1200 | 25+40 | 50 | 8 | Cutter tooth | 890 |
| φ800 | 1200 | 25+40 | 50 | 10 | Cutter tooth | 1030 |
| φ900 | 1200 | 25+40 | 50 | 10 | Cutter tooth | 1250 |
| φ1000 | 1200 | 25+30+40 | 50 | 10 | Cutter tooth | 1535 |
| φ1100 | 1200 | 25+30+40 | 50 | 12 | Cutter tooth | 1580 |
| φ1200 | 1200 | 25+30+40 | 50 | 12 | Cutter tooth | 1750 |
| φ1250 | 1200 | 25+30+40 | 50 | 12 | Cutter tooth | 1790 |
| φ1300 | 1200 | 25+30+50 | 50 | 14 | Cutter tooth | 1830 |
| φ1400 | 1200 | 25+30+50 | 50 | 16 | Cutter tooth | 1890 |
| φ1500 | 1200 | 25+30+50 | 50 | 16 | Cutter tooth | 2050 |

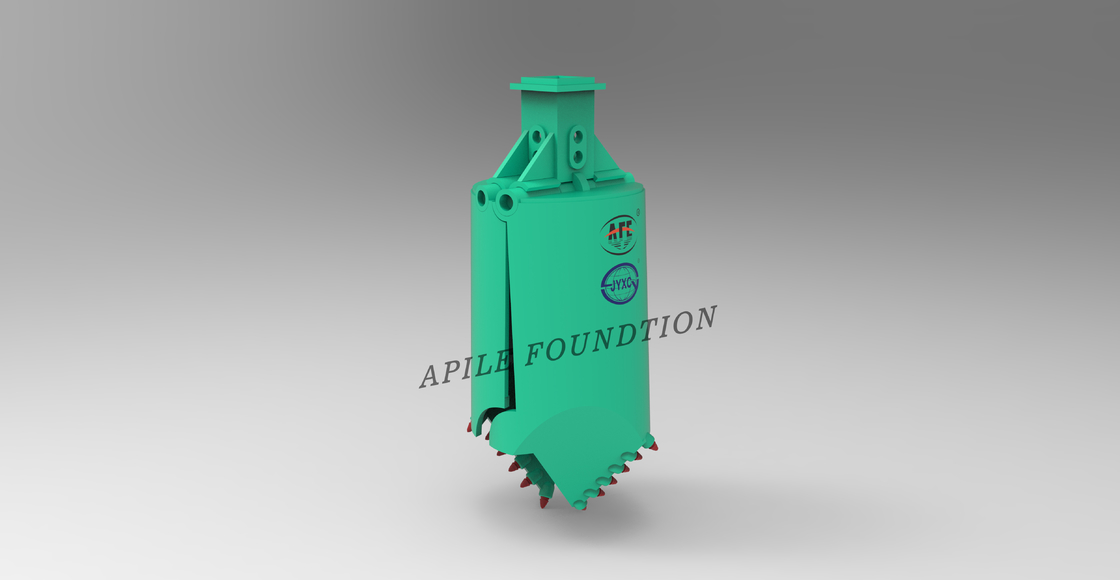

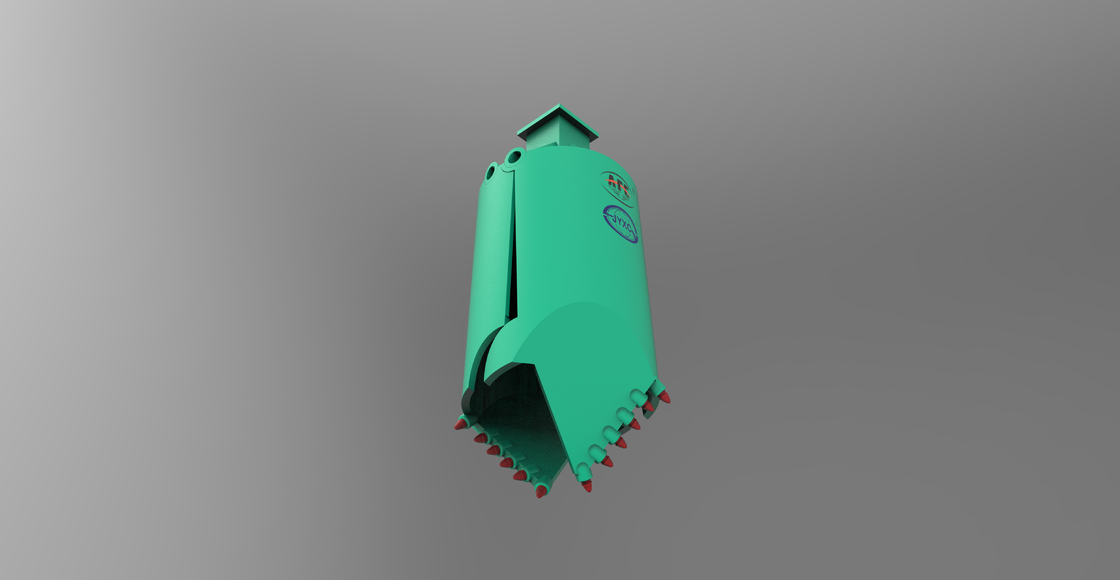

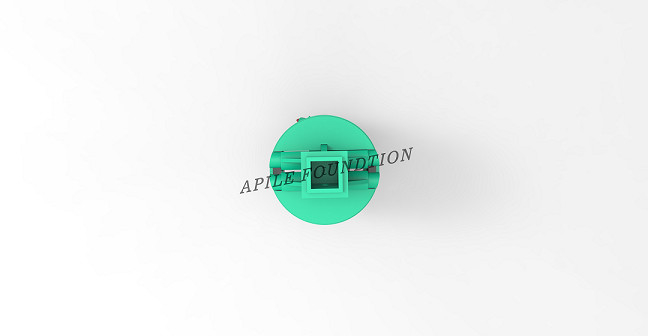

Product Name: APFBH-R Intersecting Semi-closed Drill
Structural Features:
Applicable Formation:
Suitable for drilling into silt clay, block sand, plastic frozen soil, weathered soft bedrock, etc. It is used in stratums that are difficult to pour soil after drilling with ordinary rotary excavation drill bits, which improves drilling and pour efficiency and saves construction costs.
Technical Parameters:
Note: The height, thickness, floor thickness, and number of teeth can be customized according to customer requirements.
Technical parameters:
Note: it can be customized according to customer requirements.
Service:
Jiayou Xincheng VIP service relieves your worries:
Troubleshooting within 24 hours, the responsible engineer will reply to you within 15 minutes, and provide simple troubleshooting via phone or email; if the problem cannot be resolved via phone guidance, we will issue follow-up troubleshooting solutions within 24 hours to solve your worries .
If you need my help, please feel free to contact us!
• Professional factory: My factory has more than 10 years of experience.
• Our prices are competitive.
• We aim at quality.
• Fast delivery for our customers.
• We pursue long-term business relationships.
Q&A:
Q: How about your offer?
A: First of all, we are a factory, not just a trading company. Our price is not the cheapest in the industry, but we will quote the most reasonable price according to customer requirements.
Q: How about your delivery time and packaging?
A: We will deliver the goods in strict accordance with the time agreed in the contract, and will pack according to customer needs.
Q: How is your service?
A: 1. Quick feedback
2. Guarantee punctual delivery according to the agreed time
3. Perfect after-sales system
Q: How can I believe what you say?
A: Seeing is believing. We are waiting for your arrival at any time. I will take you to visit our factory, hoping to have the opportunity to provide you with better service.
