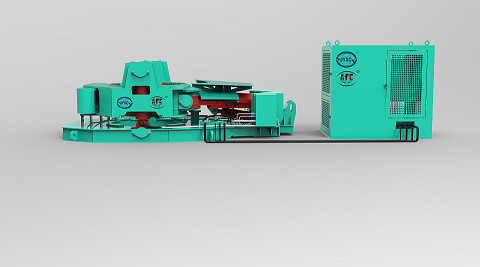

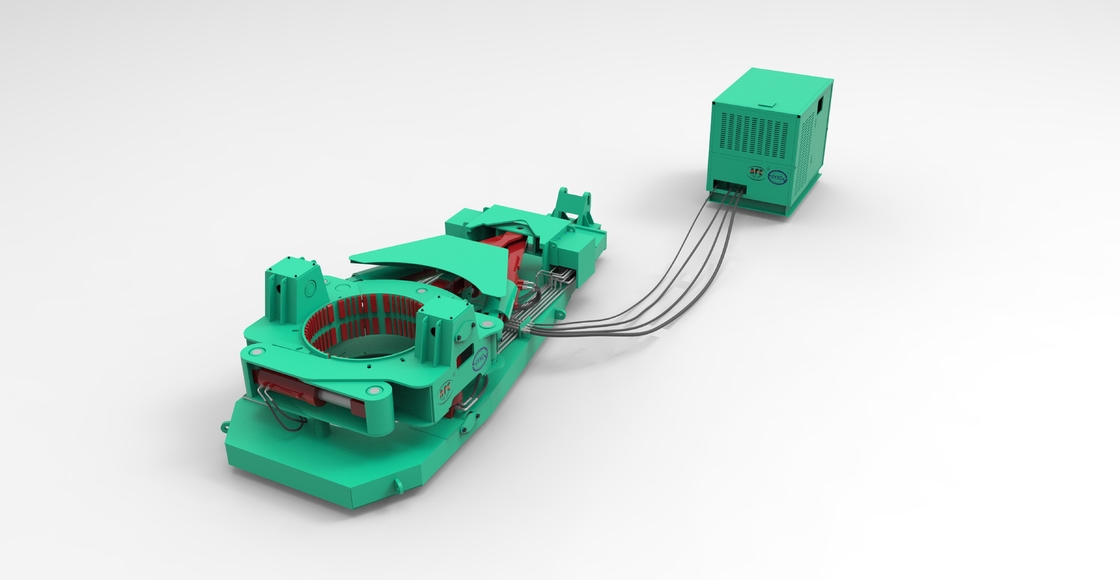

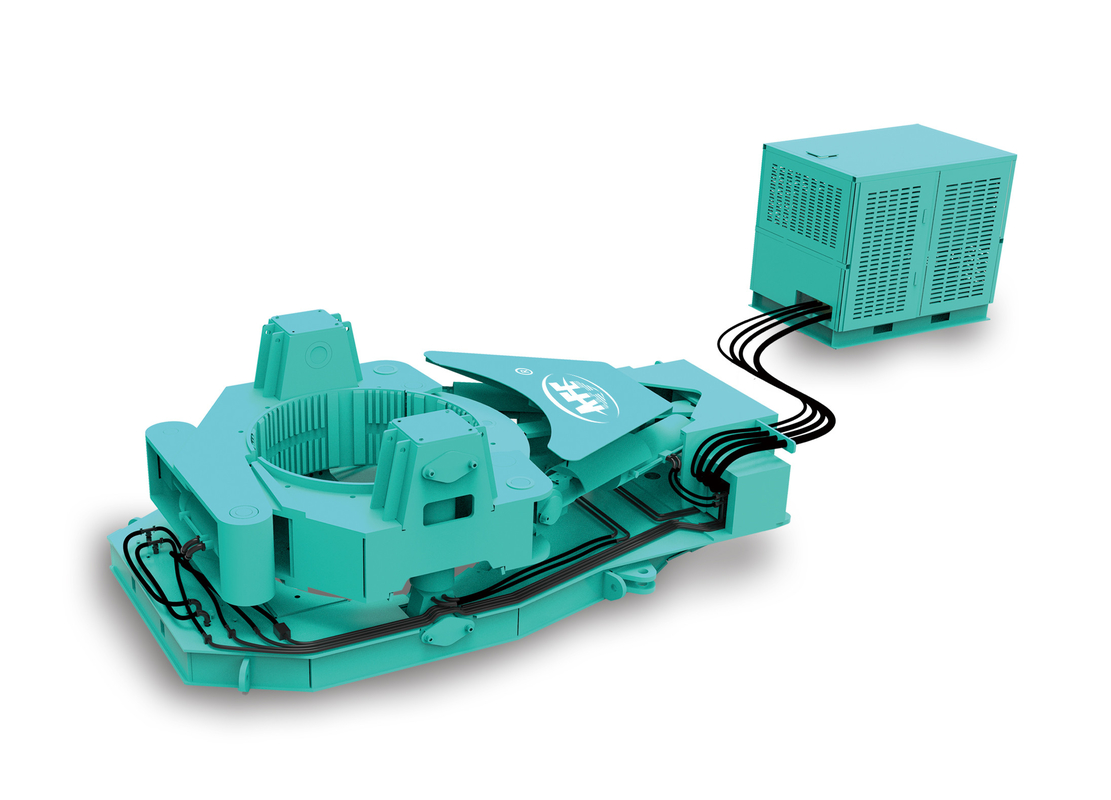

Diesel Trivalve Clamp Hydraulic Casing Oscillator For Rotary Pipe Rubbing Machine
The AFECZX Casing Oscillators/The AFEXWX Casing Oscillators:
Characteristics :
1. The design of trivalve clamp, the casing automatically has good performance to the center, and the holding force (embrace force) is large.
2. The mechanical and structural optimization design is carried out by computer simulation under construction conditions, which avoids the phenomenon of moving arc interference and hoisting in the working process.
3. The motor and diesel pump station system configuration, customers can choose according to their own needs.
4. Manual and remote control operation mode, simple and convenient to switch each other.
| Model | AFEXWX100 | AFEXWX120 | AFEXWX165 | AFEXWX180 | AFEXWX200 | AFEXWX220 | AFEXWX250 |
| Max.casing diameter(mm) | φ1000 | φ1200 | φ1650 | φ1800 | φ2000 | φ2200 | φ2500 |
| Operating pressure (Bar) | 320 | 320 | 320 | 320 | 320 | 320 | 320 |
| Torque(KN.m) | 1060 | 2100 | 2450 | 3000 | 4410 | 4920 | 7230 |
| Lifting stroke(mm) | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| Lifting force(KN) | 1530 | 2280 | 2500 | 2940 | 3690 | 3690 | 4820 |
| Clamping force(KN) | 940 | 1320 | 1470 | 1845 | 2410 | 2410 | 3770 |
| Rotation angle | 24° | 24° | 24° | 24° | 24° | 24° | 24° |
| Weight(T) | 9 | 13.3 | 20 | 24 | 30 | 34 | 40 |
| Outline dimension(mm) | 3800*2110*1440 | 4640*2280*1690 | 4980*2800*1750 | 5520*3000*2000 | 6020*3440*2050 | 6490*3700*2120 | 7250*4190*2350 |
| Jaw thickness(mm) | 480 | 520 | 660 | 680 | 750 | 820 | 890 |
| Rotaryarc Length(mm) | 218 | 260 | 345 | 375 | 420 | 460 | 524 |
Advantage
1. Detachable counterweights from 4 to 10 tons are available as required.
2. Reduce the transportation cost of the counterweight made of cast-in-place concrete.
3. Stable work The combined action of the counterweight frame and the ground anchor firmly fixes the bottom of the oscillator on the ground, reducing the reaction force of the oscillator to the drilling rig.
