Place of Origin:
HeBei China
Brand Name:
JYXC
Model Number:
ZD04
Contact Us

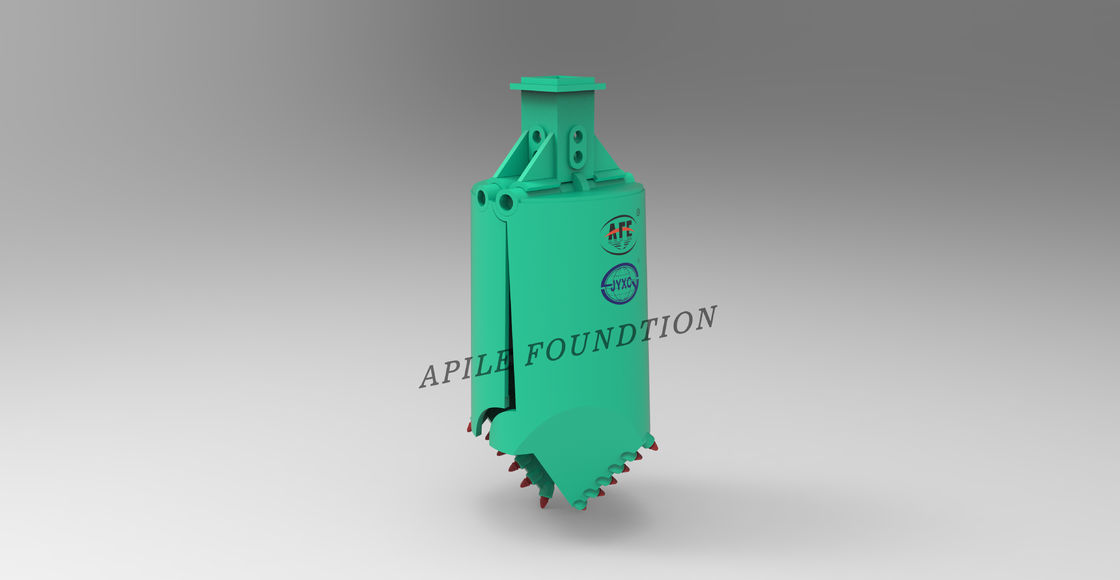

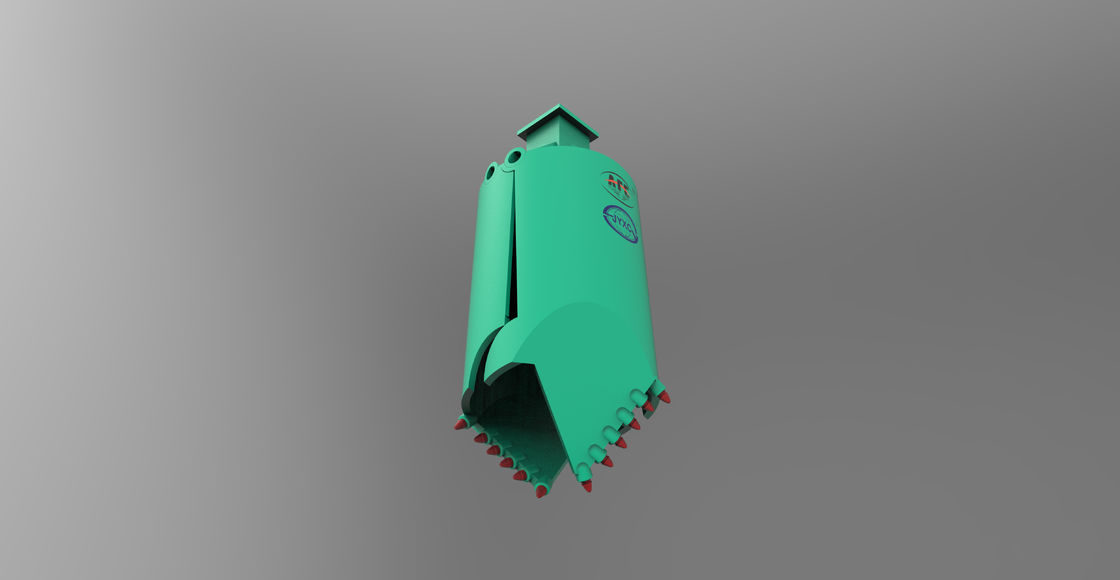

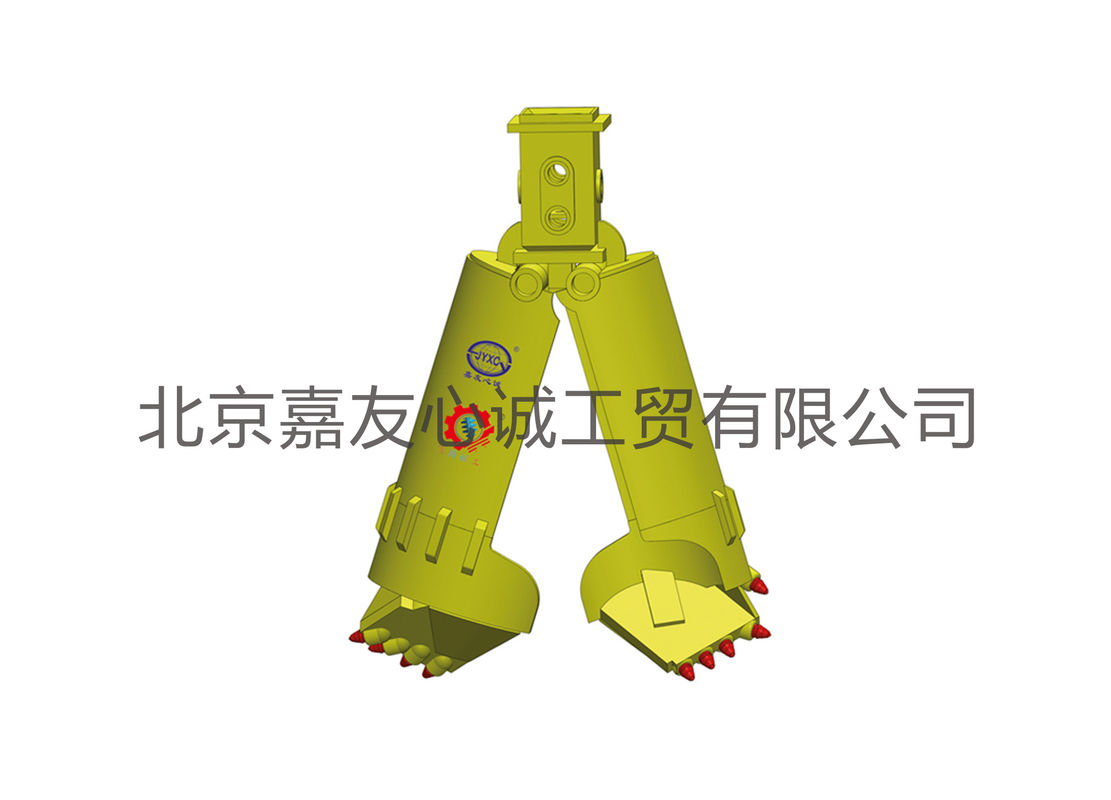

APFBH-R Intersecting Semi-Closed Drill
Structural features:
1. Semi-fit
2. The cutting tool is a pick
Applicable strata:
It is suitable for drilling muddy clay, massive sand, plastic frozen soil, weathered soft base rock, etc. It is used for the ground that is difficult to pour after the ordinary rotary drill bit drills into the soil, improves the efficiency of drilling and pours, and saves construction cost.

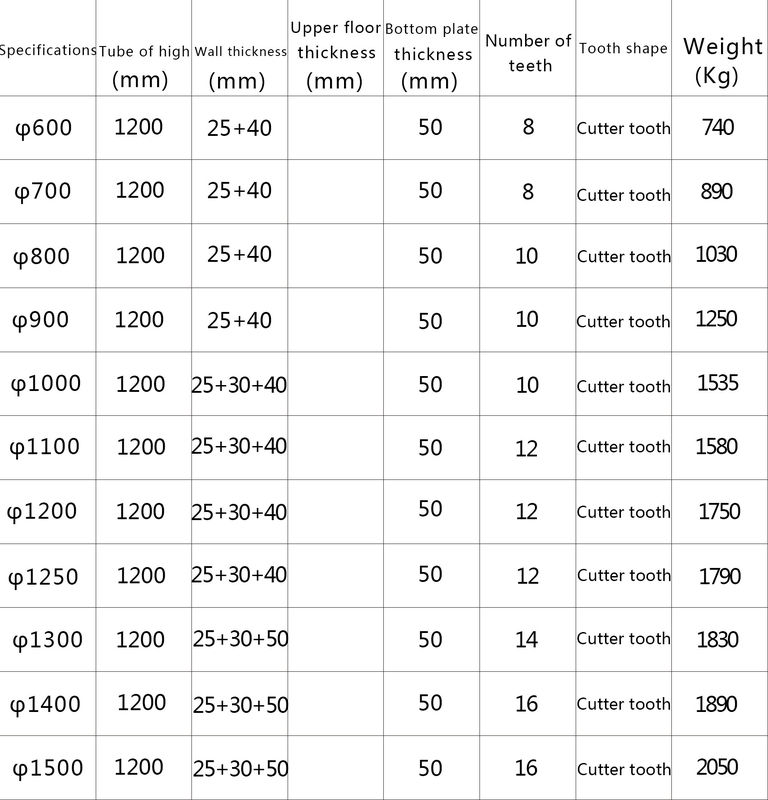

| Specifications | Tube of high (mm) | Wall thickness (mm) | Bottom plate thickness (mm) | Number of teeth | Tooth shape | Weight (Kg) |
| φ600 | 1200 | 25+40 | 50 | 8 | Cutter tooth | 740 |
| φ700 | 1200 | 25+40 | 50 | 8 | Cutter tooth | 890 |
| φ800 | 1200 | 25+40 | 50 | 10 | Cutter tooth | 1030 |
| φ900 | 1200 | 25+40 | 50 | 10 | Cutter tooth | 1250 |
| φ1000 | 1200 | 25+30+40 | 50 | 10 | Cutter tooth | 1535 |
| φ1100 | 1200 | 25+30+40 | 50 | 12 | Cutter tooth | 1580 |
| φ1200 | 1200 | 25+30+40 | 50 | 12 | Cutter tooth | 1750 |
| φ1250 | 1200 | 25+30+40 | 50 | 12 | Cutter tooth | 1790 |
| φ1300 | 1200 | 25+30+50 | 50 | 14 | Cutter tooth | 1830 |
| φ1400 | 1200 | 25+30+50 | 50 | 16 | Cutter tooth | 1890 |
| φ1500 | 1200 | 25+30+50 | 50 | 16 | Cutter tooth | 2050 |
